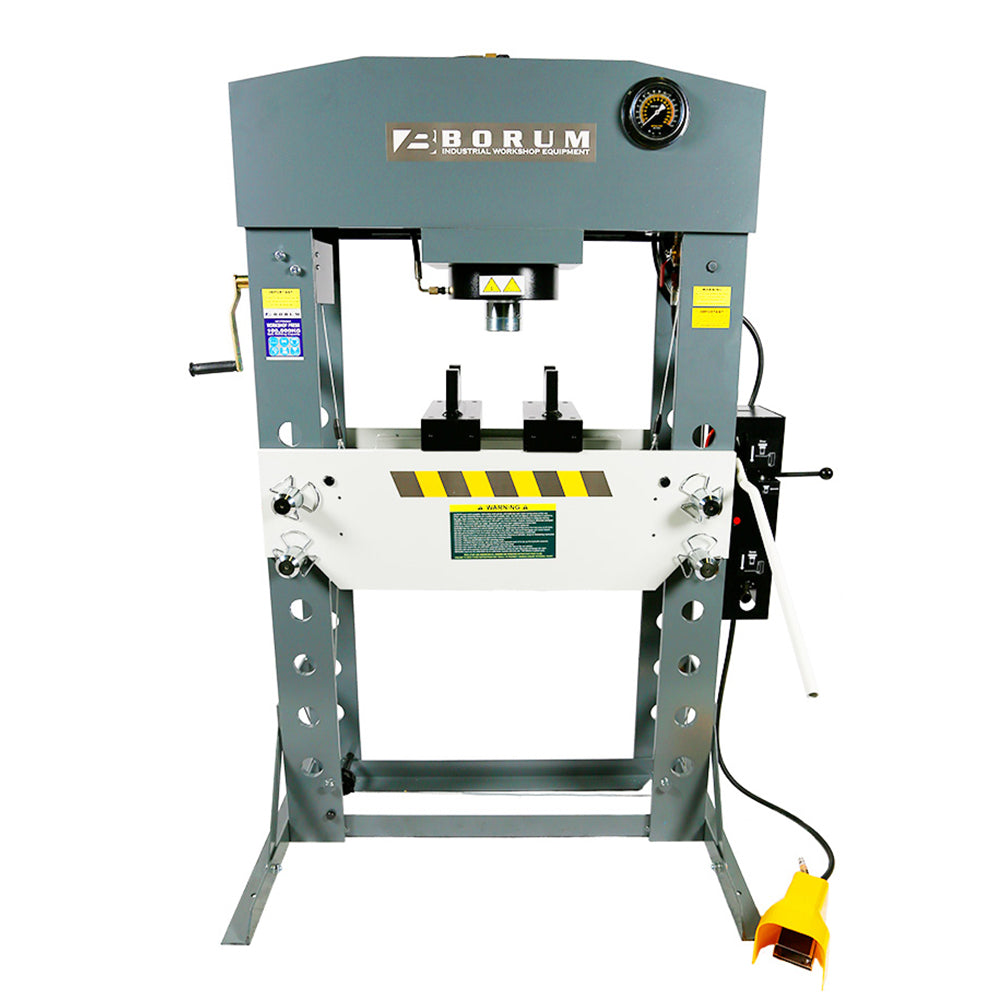

Borum Industrial Air/Hydraulic Workshop Press, 100-Tonne Capacity
Orders processed and shipped out in 1-3 business days.
Covered by the full 12-month Borum
Eligible for 100-day free
Request a free Couldn't load pickup availability
Description
Description
Ultra Heavy-Duty Hydraulic Workshop for Industrial and Automotive Uses
Looking for an economical and high-quality hydraulic press for your needs? Check out this ultra heavy-duty press that can deliver a pressure of up to 100 tonnes. Featuring polished and chromed components that minimize the wear and tear on the overall machine, this workshop is a one-stop solution for your stamping, bending, forming, and holding needs for metals. The press has an unsophisticated design for the user that included foot and hand operated controls placed conveniently on the body.
This workshop press has been designed to minimize hazards and with components that ensure the least wear and tear, even with heavy use. The pressure gauge on the top helps you with the readings in the metric system, and the overload safety valve ensures any accidents do not happen.
Features and Benefits
- Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability

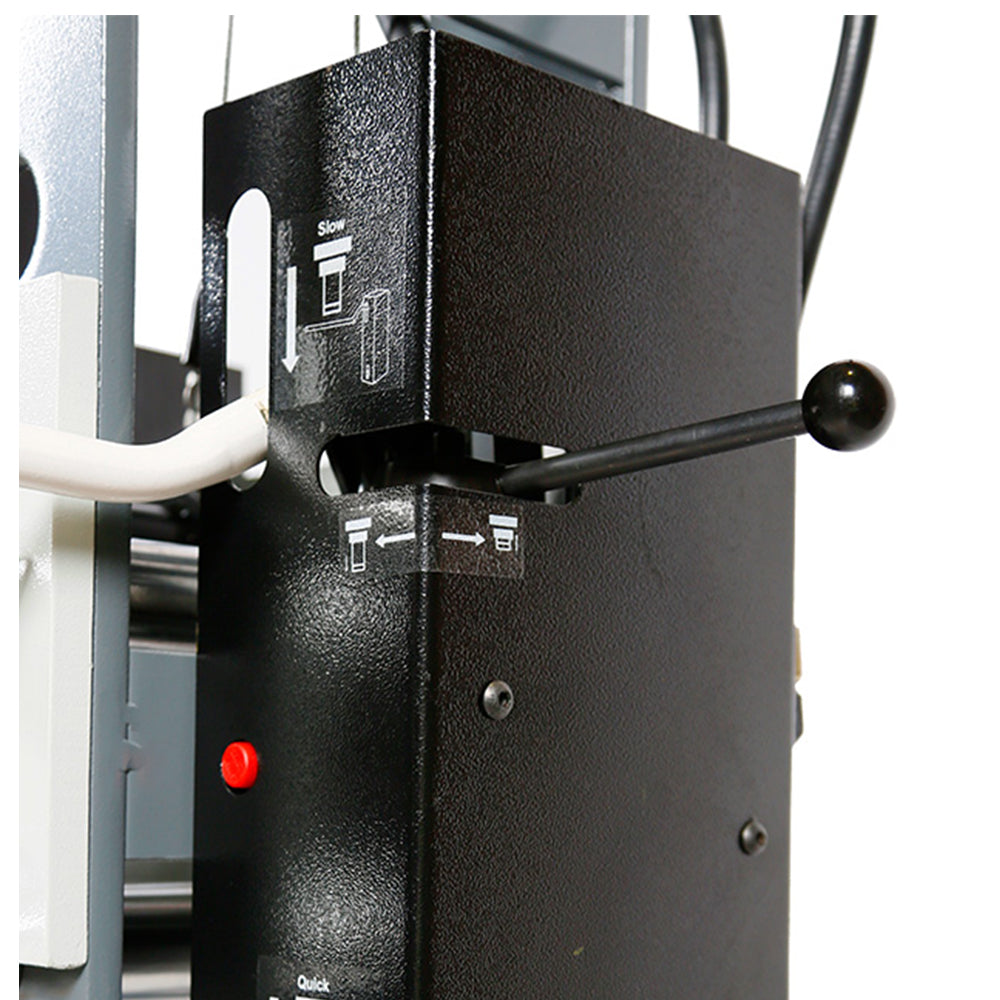

- Foot operated air trigger ram travel control
- 100mm pressure gauge

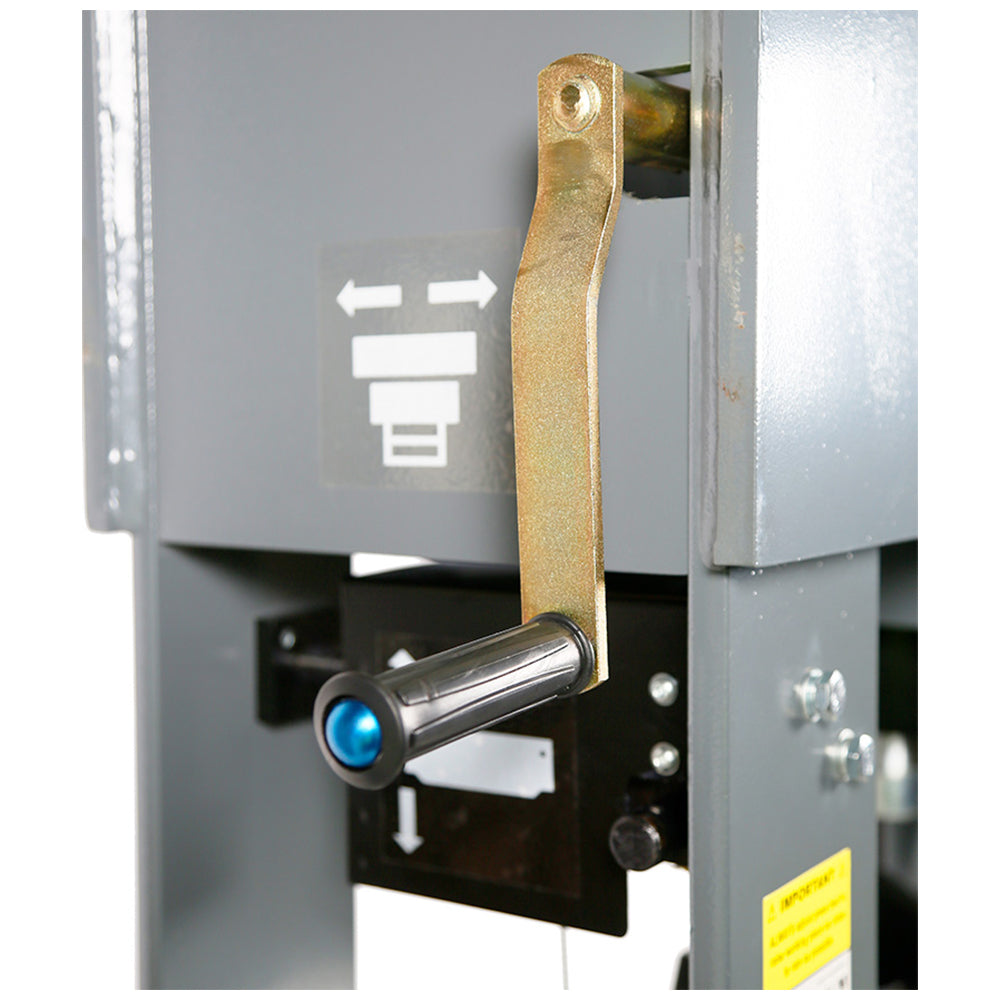

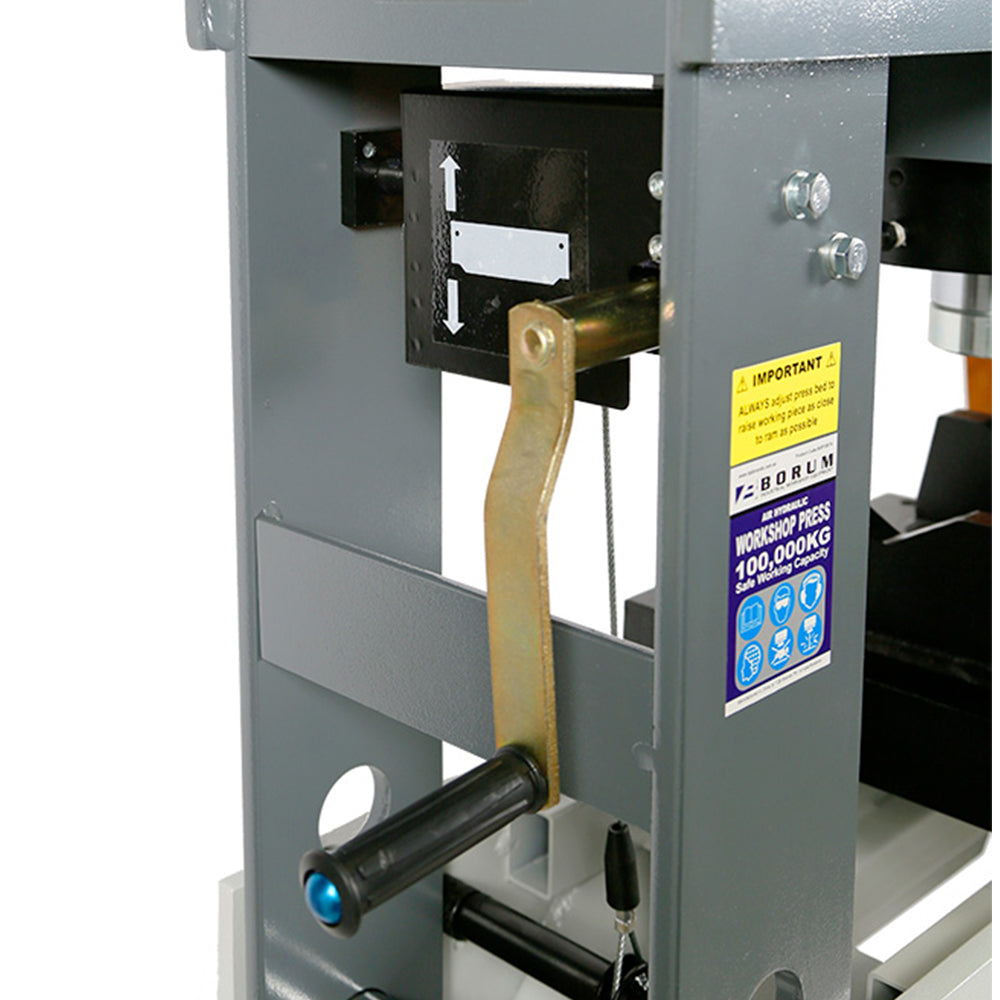

- Table winch system lowers or raises the bed
- High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
- Piston-ram is treated and polished and fitted with backup ring, preventing load from falling slowly or bypassing oil drift
- Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures

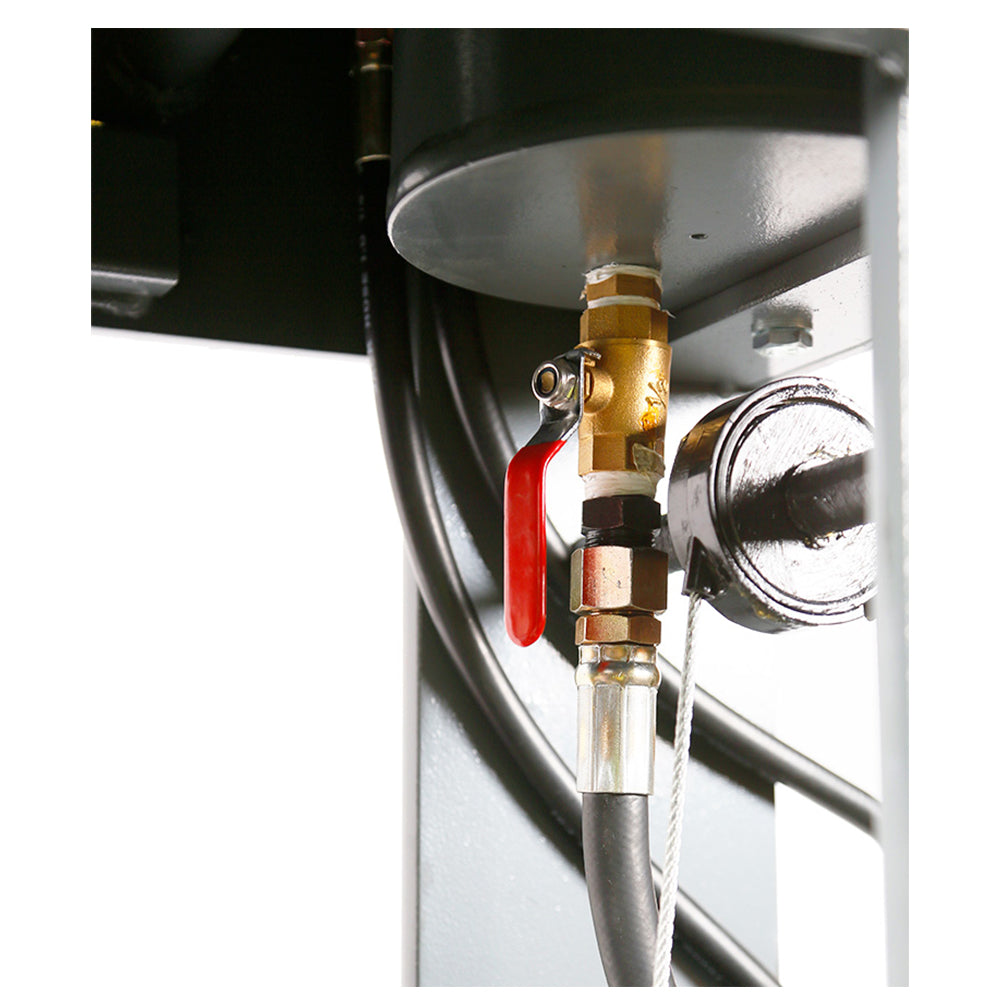

- Integrated overload protection valve keeps from overloading the system
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil, grease and dirt-resistant for easy clean up
- Extra tall working range for versatility
- Pair of bed plates included
Specifications
- Safe Working Capacity: 100,000kg
- Working Range: 113-813mm
- Overall Height: 2048mm
- Overall Width: 1199mm
- Overall Depth: 990mm
- Bed Width: 787mm
- Piston Ram Stroke: 300mm
- Bed Height Settings: 6
- Operating Air Pressure: 110-125psi
- Air Inlet: 1/4"NPT
- Carton: 1150x380x2044mm
- Gross Weight: 762kg
