Equipco 240v Fuel Bowser System for Diesel Transfer

$2,57600 $2,83300
Equipco  |  SKU: HD70

fast box Orders processed and shipped out on the next business day. warranty icon Covered by the full 12-month Equipco warranty returns icon Eligible for 100-day free returns quote request icon Request a free  quotation

Need this before Christmas?
See delivery estimate details here.

Description

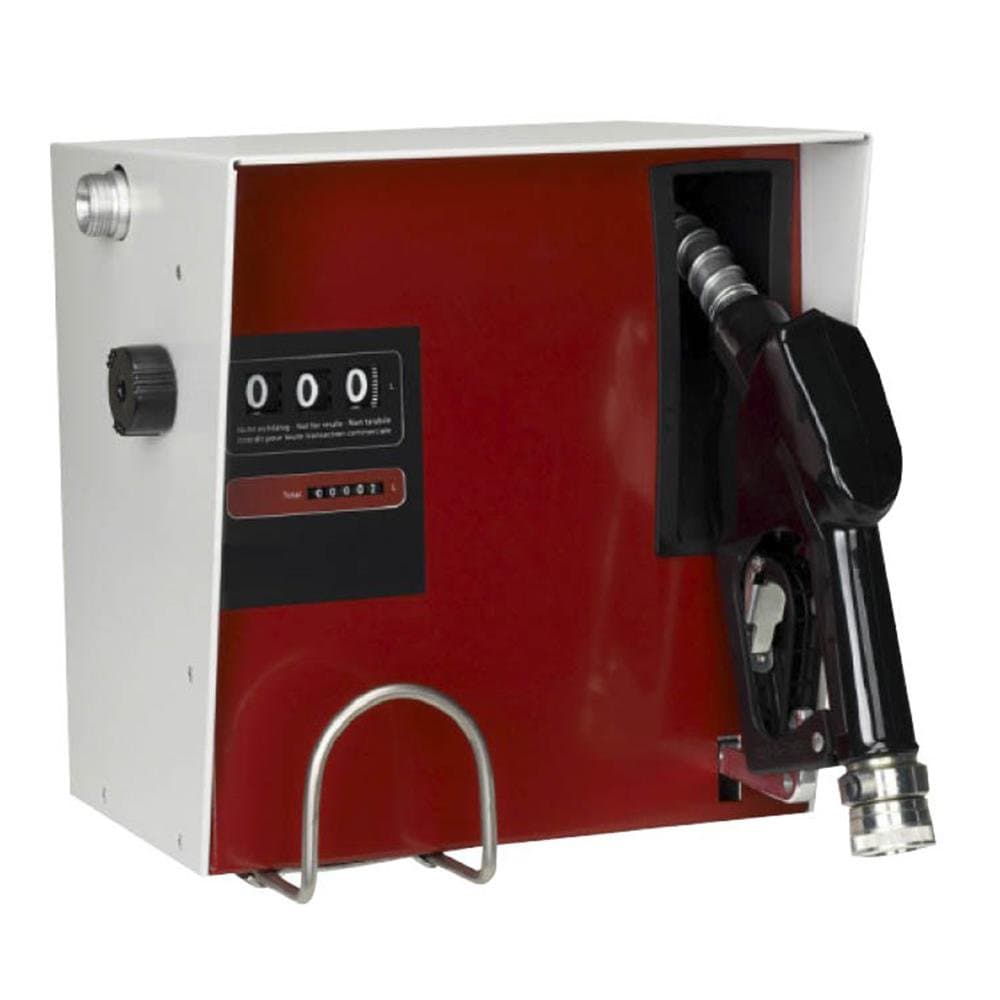

Fuel Pumping Bowser System With 240v Self Priming Pump And Three Digit Mechanical Meter

The Equipco 240v Fuel Bowser System for Diesel Transfer would be an excellent choice for transferring diesel from a tank to a vehicle. It is equipped with a 6m rubber hose and an auto nozzle. It features a quality German design and comes with an optional pedestal mount for hanging the hose. It has a rotary vane self-priming pump which delivers a flow speed of 60 LPM.

For those who often require refuelling their huge machinery and equipment, the Equipco 240v Fuel Bowser System for Diesel Transfer is an essential tool for transferring diesel, easily. While doing that, one can also keep tabs on certain amounts through the digital mechanical meter. The browser has a modular design so it can be mounted over different tanks as and when required. It has been made from high-grade steel and painted with non-corrosive paint to resist chipping.

 Features and Benefits

  • 240v Fuel Bowser System
  • 3 Digit Mechanical Meter
  • 60 LPM Free Fuel Flow
  • German Design
  • Optional Pedestal Mount
  • Auto Shutoff Nozzle
  • 6m Rubber Hose

Specifications

Technical data DM60 DM100
Connecting Cable length (m) 2
Connection suction side 1'' BSPP 1'' BSPP
Connection discharge side 1'' BSPP 1'' BSPP
Pump design
       Vane Pump, Self-Priming
Delivery Rate Under Free Discharge(l/min) 60 100
Discharge Pressure Upto (PSI) 26PSI 32PSI
Suction height (m), With Foot Valve 5 5
Pumping media
                Fuel Oil and Diesel
Insulation Class F F
Highest Permissible Limit Temperature (°C) 155 155
Voltage (V) 240 240
Frequency (Hz) 50 50
Power consumption (A) 3 5,7
Power (kW) 0.6 1.2
Torque (Nm) 1.27 4.1
Rotation speTorque) 2800 1400
Type of Construction IMB 3 IMB 3
Protection class IP 54 IP 54
Seals FKM (Viton®) FKM (Viton®)
Pump Housing
AlSi 12 (Sea Water Resistant)
Stator 1.4301 1.4301
Vane POM POM

 Duty Cycle (min)                                        Continuous Operation
