Heeve 2.3m Aluminium Curved Folding 3-Piece Loading Ramp Bundle

$1,51900 $1,64100
Heeve  |  SKU: H0001+H0001+H0647+H0021

delivery man with parcel Pickup available. Select at checkout fast box Orders processed and shipped out on the next business day. warranty icon Covered by the full 12-month Heeve warranty returns icon Eligible for 100-day free returns quote request icon Request a free  quotation

Now with enhanced features for better performance

Need this before Christmas?
See delivery estimate details here.

Description

Full-Width Heavy-Duty Curved Folding Aluminium Loading Ramp with Standard & Reinforced Options


With the Heeve 2.3 m long lightweight aluminium loading ramps, you can safely and easily load your motorcycle, lawnmower, ATV, or UTV.

Heeve's aluminium curved folding ramp is composed of two side ramps with three red rubber-coated connection prongs on each ramp designed to prevent marks or scratches on your ute or trailer, as well as 2 x safety straps to secure your ramps in place while in use safely.

When used for motorcycle ramp loading, the middle ramp serves as a walkway while loading your motorcycle either on the left or the right side ramp.

Additionally, the increased capacity and strength added by the additional middle ramp are designed to secure the ramp to your vehicle safely.

The middle ramp boosts a 680kg loading capacity on its own, and when added to this bundle, solidifies the strength and stability when loading 3-wheeled and 4-wheeled vehicles with ease.

Full Width Ute Ramp

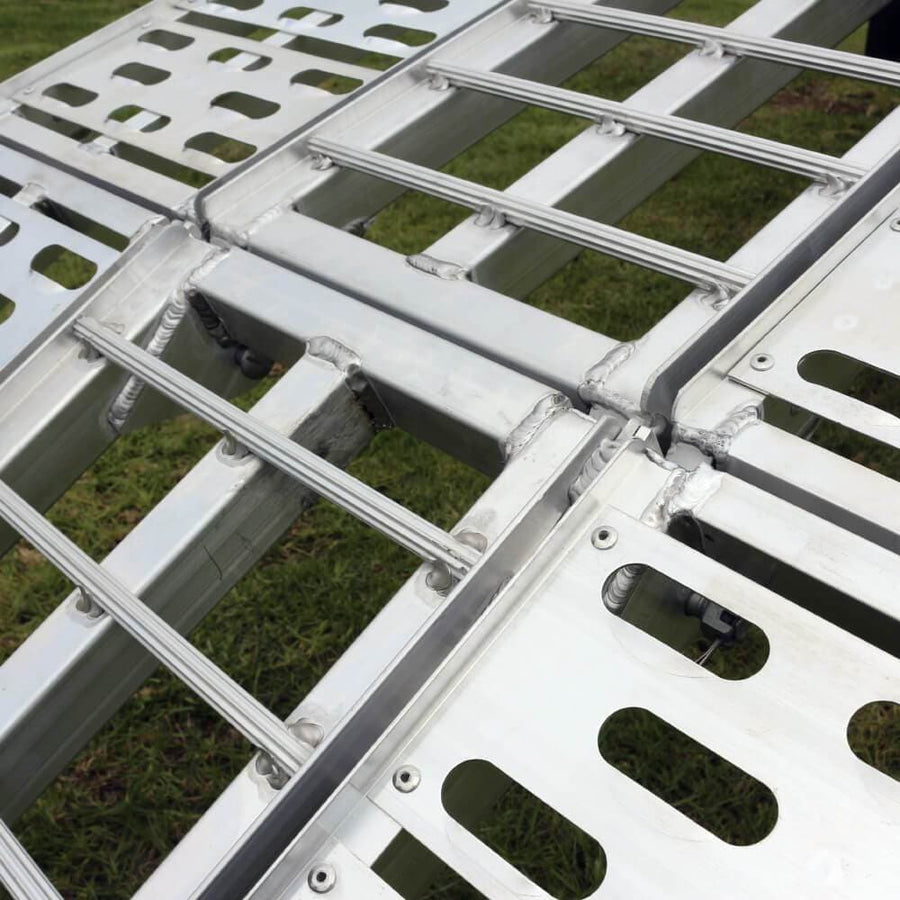

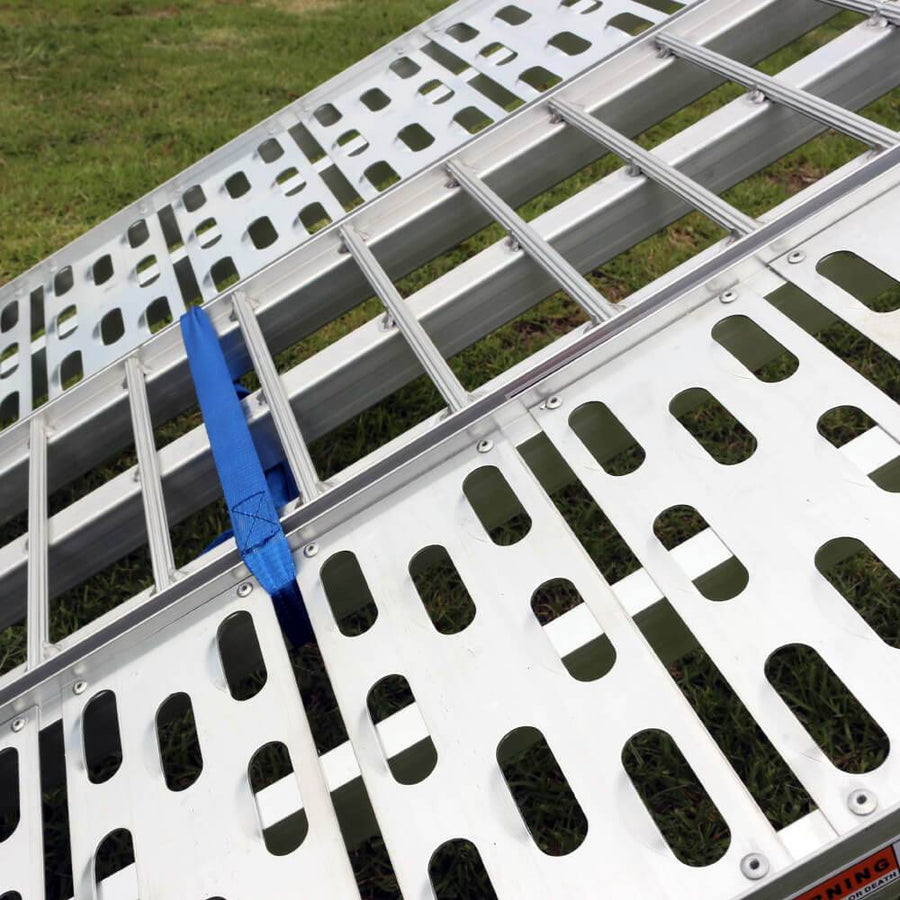

Heeve's full-width ramp combines three loading ramps securely joined together with heavy-duty straps to make a wide loading ramp.

The Standard version comes complete with a solid aluminium plate and pin connection point, plus a connection kit designed to safely secure the ramp to your vehicle or trailer when loading and unloading.

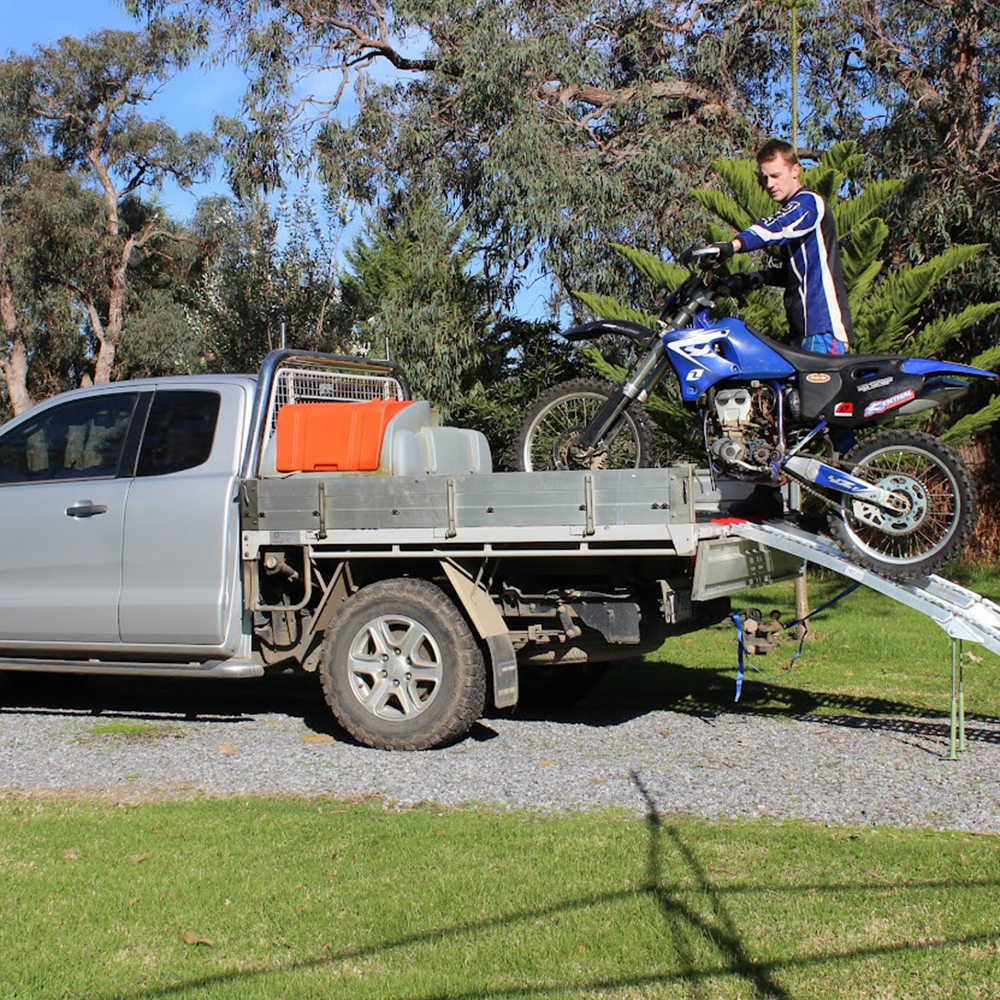

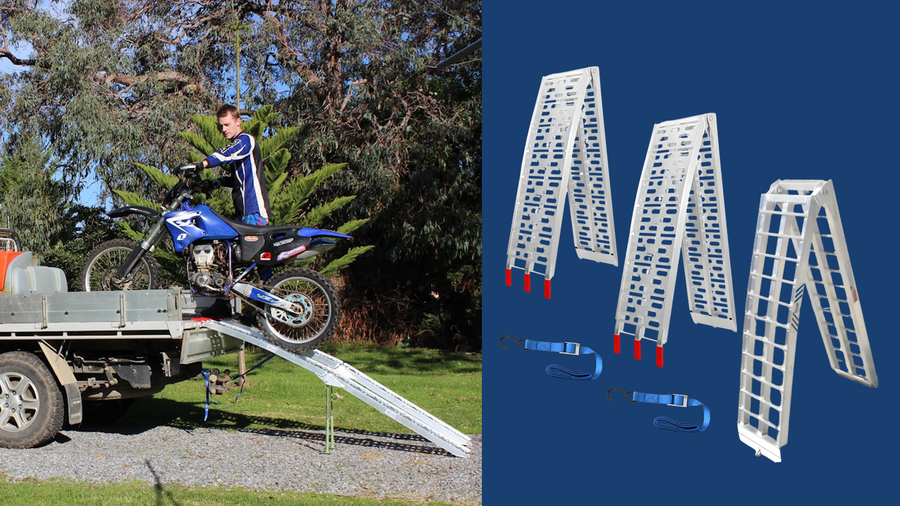

"On the left, a dirt bike is being loaded onto a flatbed truck using a curved aluminium ramp with safety straps securing it in place. On the right, three aluminium folding ramps are displayed in different positions, showcasing their foldability, lightweight design, red rubber tips for stability, and included blue safety straps."

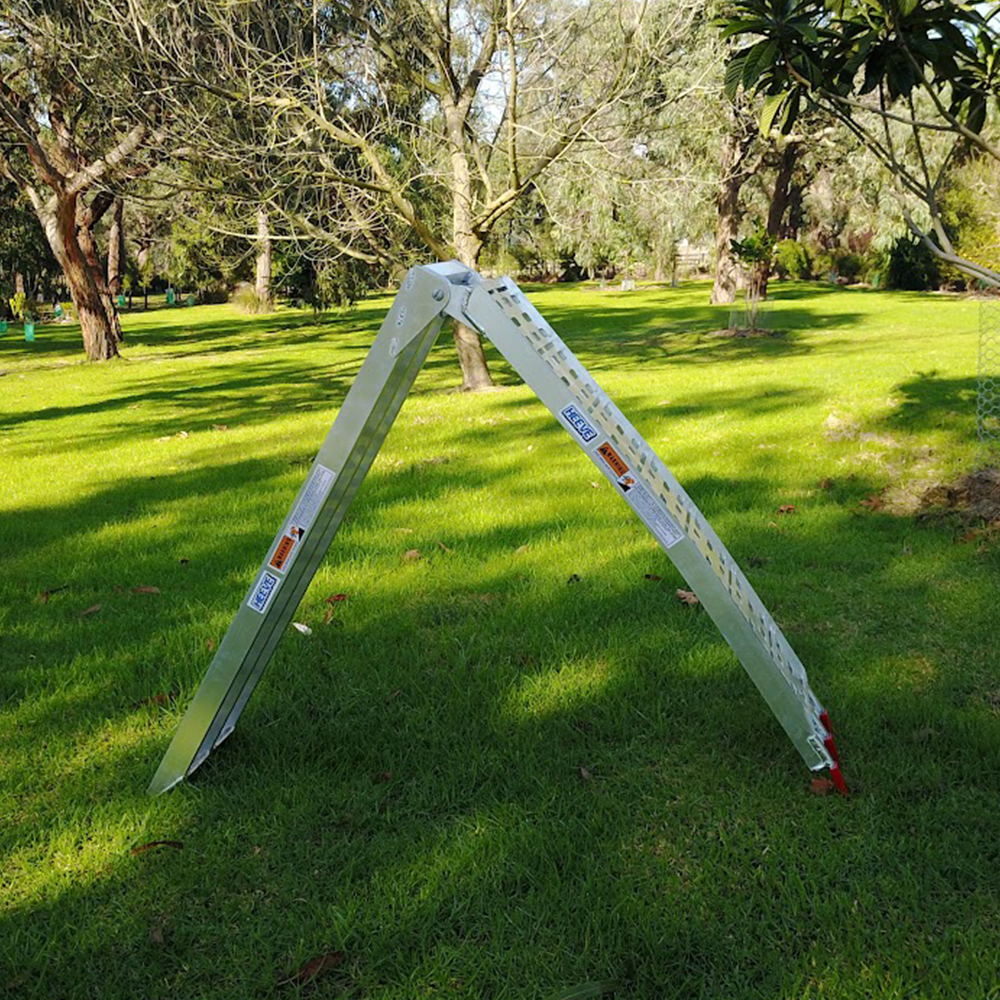

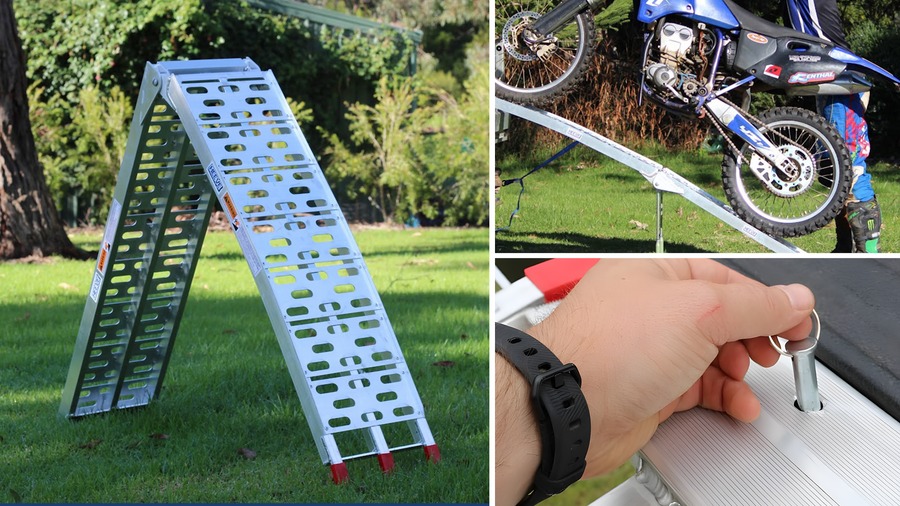

"On the left, a sturdy aluminium folding ramp with red rubber-tipped feet is set up on grass, showcasing its durability and stability. On the top right, a motorbike is being loaded onto a vehicle using the ramp, demonstrating its practical application with secure safety straps. On the bottom right, a close-up shows a person locking the ramp in place with a pin for added security during use."

This versatile ramp is not only suited to motorcycles but can also be used for a wide range of applications, such as a walk ramp, wheelbarrow ramp, and more. The middle ramp is available in two distinct versions to meet your specific needs:

Standard Version

The Standard version of the Heeve Aluminium Curved Loading Ramp comes with two H0001's and a H0014 ramp that features a single middle rung, offering a balance between strength and ease of use.

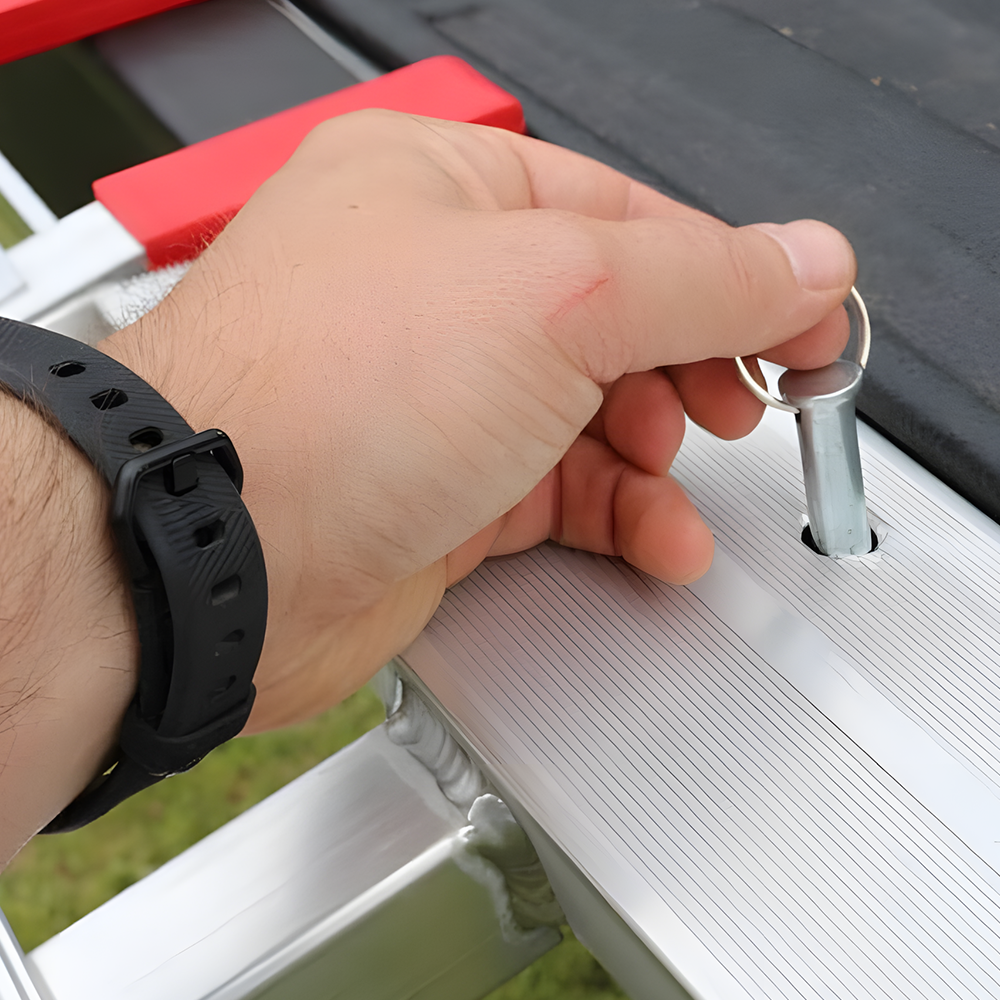

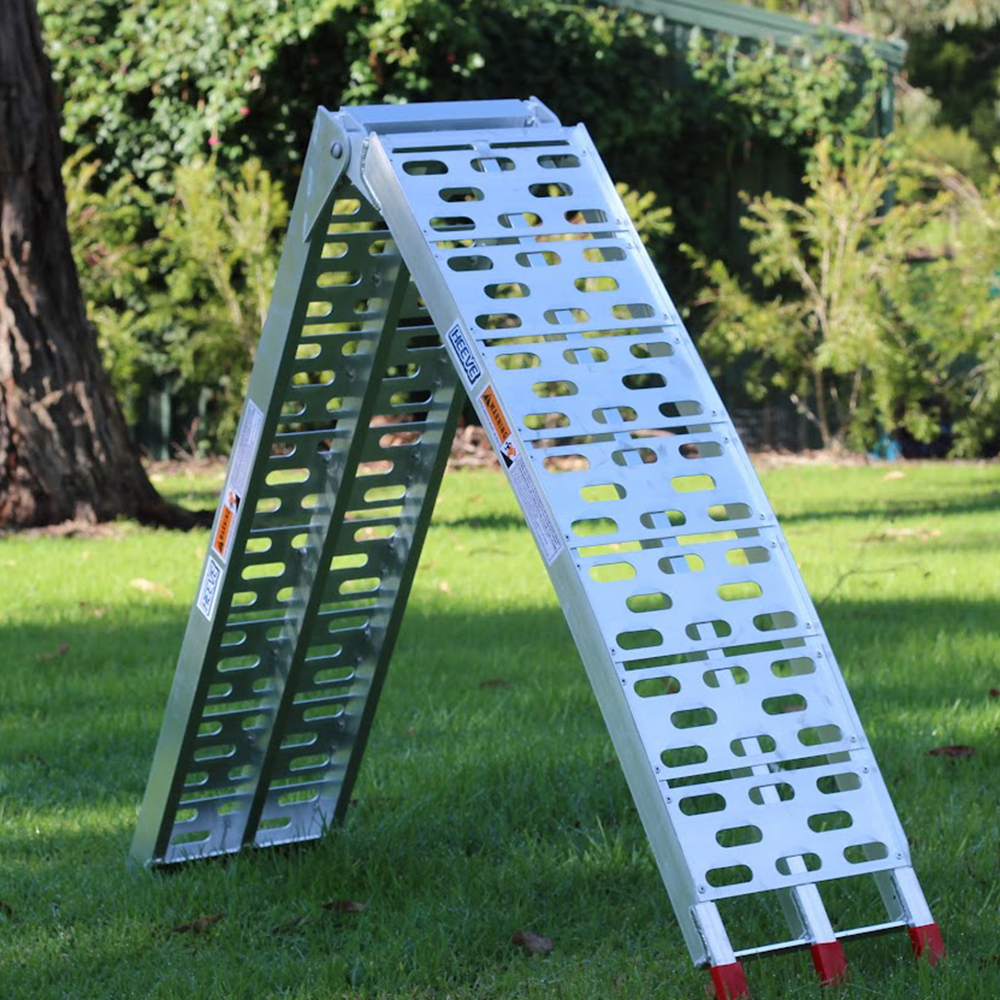

It comes equipped with pre-drilled holes and locking pins, ensuring a secure connection to your vehicle or trailer when loading and unloading.

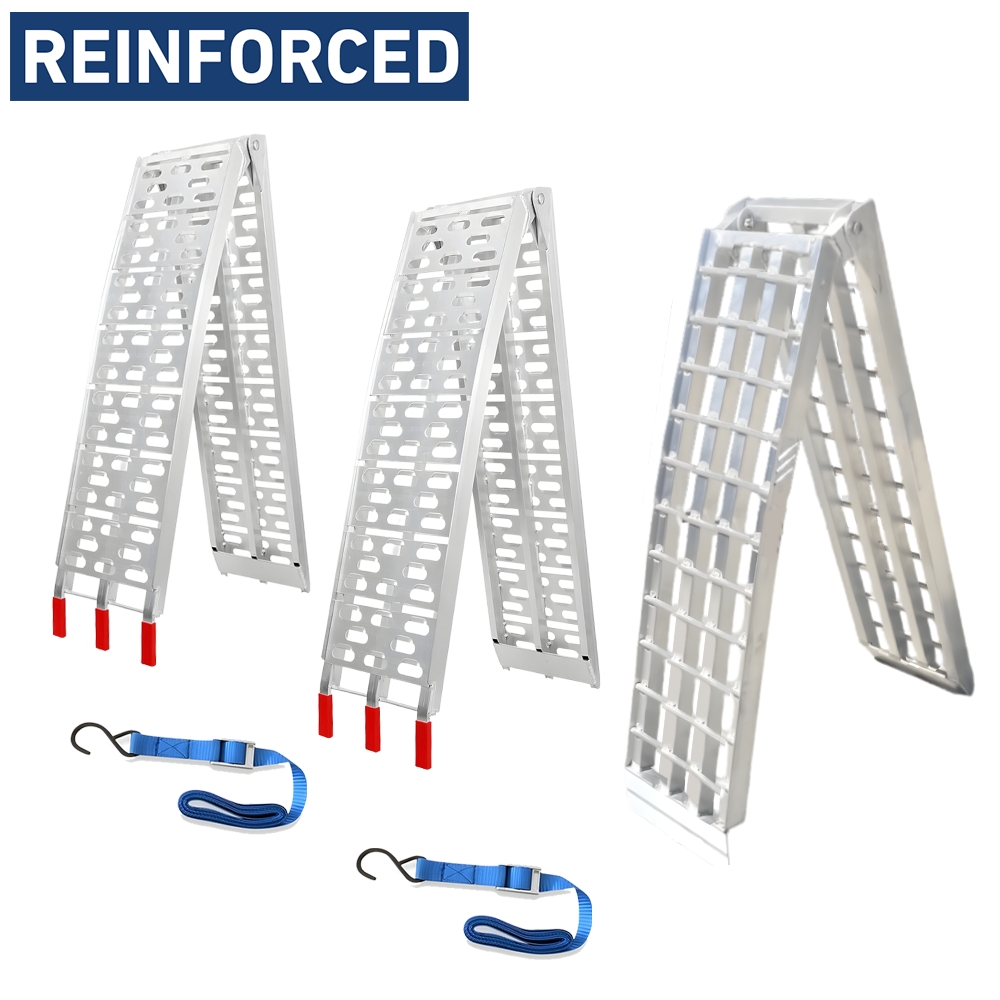

Reinforced Version

With the new and improved design of the Reinforced version of the Heeve Aluminium Curved Loading Ramp that comes with two H0001's and a H0647 ramp, the middle ramp features double middle rungs, providing additional strength and stability.

Unlike the Standard version, this model does not have pre-drilled holes or locking pins but offers enhanced reinforcement in the middle.

Both versions come complete with a solid aluminium plate and offer the same impressive load capacity and folding convenience. Choose the one that best suits your loading requirements.

Versatile Usage Solutions:

The full-width Heeve loading ramp is not only suited to motorcycles but is also wide enough to be used for a varying range of applications, such as a walk ramp, wheelbarrow ramp, ride-on lawnmower ramp, ATV or UTV ramp.

The centre ramp has an enhanced rung design and a heavy-duty load rating of 680kg, making it suitable for the majority of the load.

Not only can the ramp be used for multiple purposes as a full-width ramp, but each ramp piece can be used individually on its own by removing the connection kit.



For Motorcycle Ramp Loading:

This loading ramp offers versatile options to maximise its capacity for motorcycles.

  • For motorcycles under 340kg, you can use either the left or right ramp, utilising the middle or other ramp as a walkway.
  • For motorcycles over 340kg, use the middle ramp, which supports up to 680kg on its own.



For 3-Wheeled Vehicles:

Designed specifically for 3-wheeled vehicles, this ramp set provides a combined capacity of 1360kg, with two side ramps each supporting 340kg and the middle ramp supporting 680kg.

  • Ideal for vehicles with one wheel in front and two in the back, or two wheels in front and one in the back.
  • Note: The 1360kg capacity is not applicable for motorcycles that exceeds 340kg, with sidecars.



For 4-Wheeled Vehicles:

This loading ramp set simplifies the process for 4-wheeled vehicles.

  • The middle ramp can be used as a walkway, allowing an assistant to help push the vehicle up.
  • With a 680kg capacity, this ramp set is suitable for various vehicles, including ATVs, utes, mowers, trailers, and more.



Aluminium 3-Piece Ramp Features and Benefits

  • High-strength rung design supports loads of up to 680kg for the middle ramp
  • Use the ramp as a kit or use all three ramps individually
  • The standard version has a secure connection plate and pin
  • Made from corrosion-free marine-grade alloy
  • Folds in half for easy transport and storage
  • Wide enough for hassle-free and fuss-free loading and unloading of your ATV or motorcycle
  • Lightweight yet very durable
  • Suitable for a wide range of applications
  • Certified to the highest international CE standards, guaranteeing the quality and safety of each ramp (EN ISO 12100:2010)

Available Options

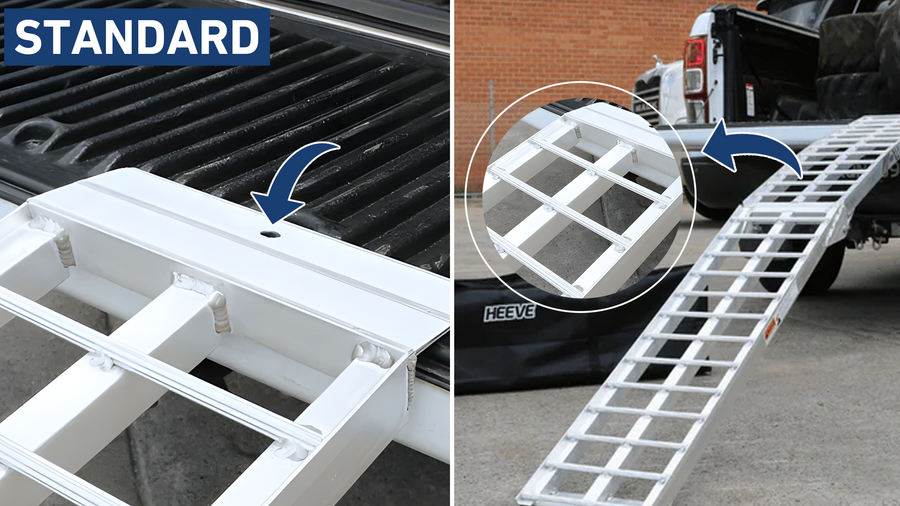

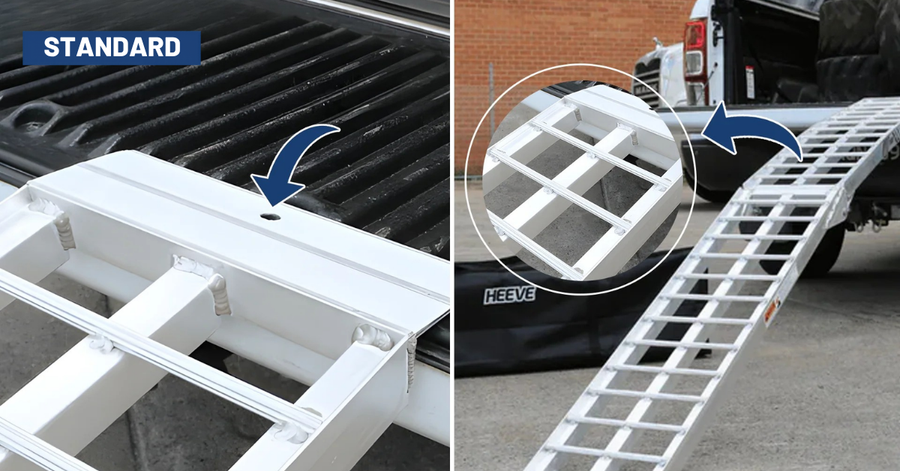

showing-of-punched-hole-for-the-pin-lock-and-the-single-middle-rung
  • Standard (Single Middle Rung): with pre-drilled holes and locking pins

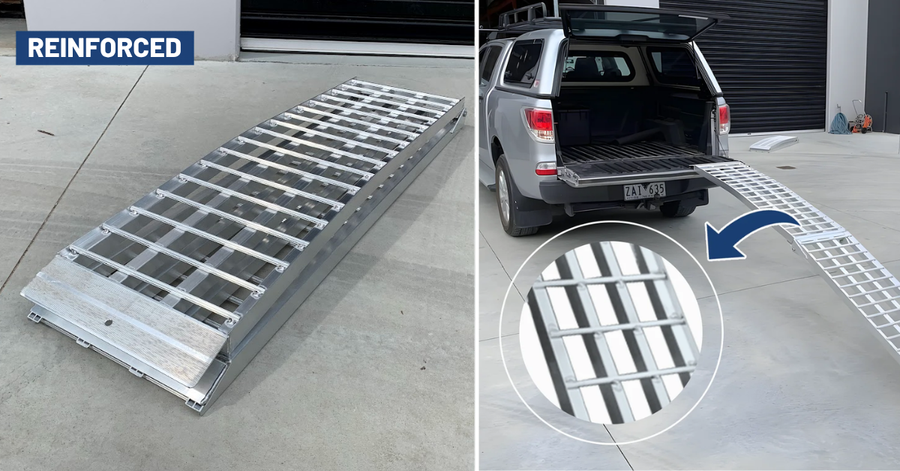

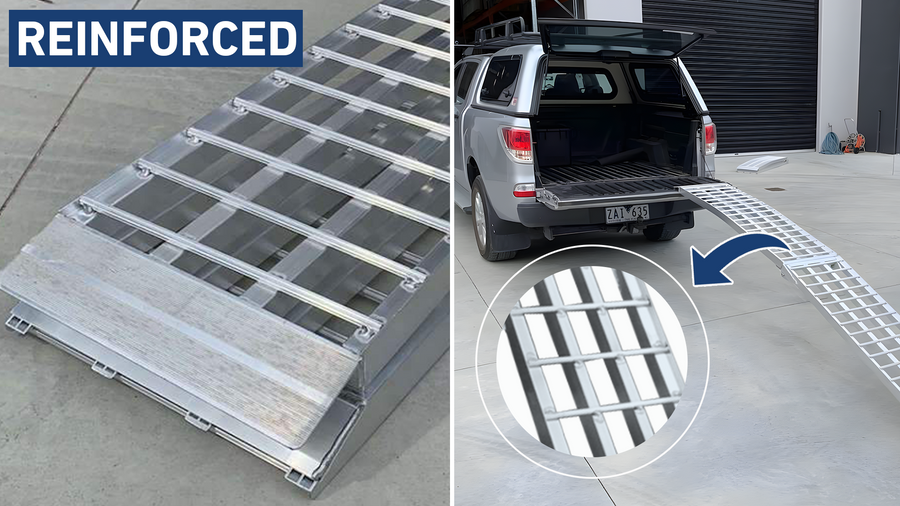

Reinforced showing no holes and pin lock, and the the 2 middle rungs
  • Reinforced (Double Middle Rung): with reinforcement rungs in the middle and no pre-drilled holes and locking pins

What's in The Box?

Standard Version (With Single Middle Rung):

  • 2 x H0001 ramps
  • 1 x H0014 ramp
  • 1 x Pin
  • 1 x Instruction manual
  • H0021 Kit

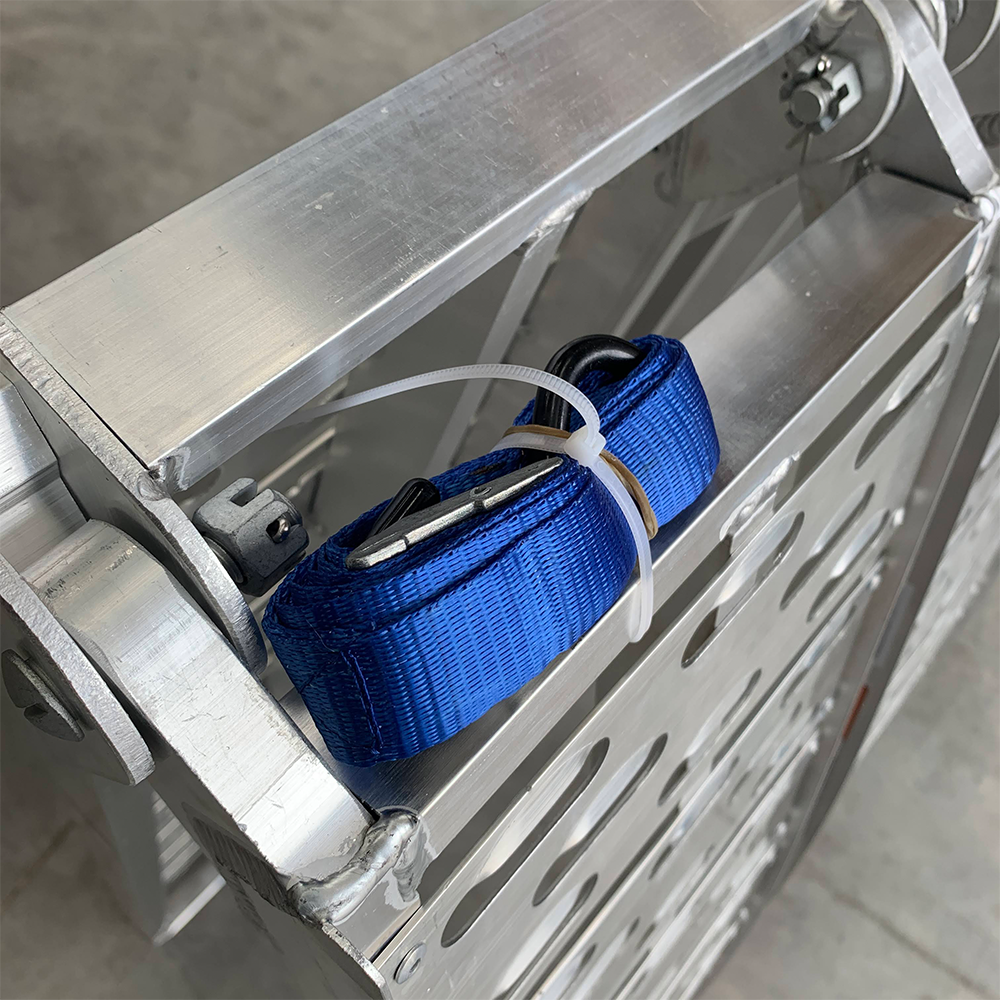

    • 2 x Safety straps
    • 2 x Bolts (100mm)

Reinforced Version (With Double Middle Rungs):

  • 2 x H0001 ramps
  • 1 x H0647 ramp
  • 1 x Instruction manual
  • H0021 Kit
    • 2 x Safety straps

The Heeve Full-Width Loading Ramp is your go-to solution for safe, efficient, and versatile loading, perfect for all your motorcycle ramp loading needs.

Instruction Manual

Heeve 2.3m x 1.3-Tonne Alum. Curved Folding Heavy-Duty Lawn Mower Ramps INSTRUCTION MANUAL DOWNLOAD

Specifications

  • Capacity
    For Motorcycle loading: 340kg on side ramps, 680kg on middle ramp

    For 3-wheeled vehicles with one front or rear wheel: 1360kg

    For 4-wheeled vehicles: 680kg
  • Weight
    Weight per ramp:
    Side ramps: 8kg (per ramp)
    Centre Ramp: 12kg
    Weight overall: 28kg
  • Length
    2300mm
  • Width
    Width per ramp: 280mm
    Combines Width: 810mm
  • Colour
    Silver

Delivery

All orders are shipped from Australia with fast shipping from trusted couriers & order tracking notifications sent via SMS and email.

Orders processed and shipped out on the next business day.

Delivered via courier: VIC, ACT & NSW 2-4 days, QLD & SA, 3-5 days, WA & NT 6-8 days

Pickup available. Select at checkout

View our shipping policy for full delivery details.

Our customer support team is here to help with any delivery concerns.

Finance Options

Request a Quote

Your Details Are Safe

  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Lifetime Support

Ramp Champ customers get free lifetime product support from our ramp experts.

Need help? Call us anytime 1300 913 047

Heeve 2.3m Aluminium Curved Folding 3-Piece Loading Ramp Bundle Reviews

Frequently Asked Questions

Can the Heeve Full-Width Loading Ramp be used for different types of vehicles?

Absolutely! The Heeve Full-Width Loading Ramp is versatile and can be used for a variety of vehicles, including motorcycles, ATVs, UTVs, lawnmowers, and wheelbarrows. Its wide design allows for easy motorcycle ramp loading, as well as loading and unloading of three-wheeled mowers, dirtbikes, and more.

How do I ensure the ramp is securely attached to my vehicle during use?

The motorcycle ramp aluminium features a solid aluminium plate and pin connection point designed for secure attachment. Additionally, it includes three red rubber-coated connection prongs on each side ramp to prevent marks on your ute or trailer, along with two safety straps to keep the ramps in place while in use.

Is the Heeve Full-Width Loading Ramp easy to transport and store?

Yes, the Heeve Full-Width Loading Ramp is designed for convenience. It is made from lightweight yet durable marine-grade alloy, and it folds in half, making it easy to transport and store. Each of the three ramps can also be used individually if needed, offering further flexibility for motorcycle ramp self loading.

What is the warranty on Heeve items?

Ramp Champ only works with well-known, industry-leading manufacturers such as Heeve. All products come with a minimum 12-month warranty. For further information see the Heeve Warranty page.

Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately.

What is your returns policy?

We know how crucial it is to find the perfect products for your access needs. To ensure you shop confidently, we proudly offer 100-day Free Returns on eligible products.

If you need to return your product, we'll organise and cover the return shipping costs across Australia without any restocking fees or hidden costs.

You'll have the option for a store credit, a full refund, or an exchange when the returned products meet the return criteria:

  •  The products cannot be used, damaged or modified and must be returned in the original packaging materials.
  •  Some products, such as almost new, made-to-order, installed, and custom-made products, aren't eligible for return.
  •  The 100-Day period begins from the day that your order is delivered or picked up.
  •  Only valid for the original purchaser.
  •  Only valid for online sales via rampchamp.com.au.
  •  Refunds, store credits or item swaps apply only to the cost of the products. Installation fees and original shipping costs will not be refunded.

Find our more by visiting our Refund Policy page.

How can I place an order?

How to order online: Find a product you'd like to buy on our website and click on the add to cart button. Then, simply follow the instructions on the checkout page. If there were any options or upgrades that you may have missed, one of our customer service staff members will contact you either by email or phone before we process your order.

How to order by phone: Call us on 1300 913 047. Our expert staff will help you select your product based on your individual requirements. We only stock the best brands and have the most competitive prices to ensure that you'll be completely satisfied with every RampChamp.com.au purchase you make. If you feel comfortable, go ahead and place your order online.

How to order by email: Send us an email at sales@rampchamp.com.au and one of our staff members will get back to you as soon as possible with an invoice for your order. Please include the product, any options or upgrades that you might require and your full address for delivery.

Do you have a physical store?

We do not have a storefront. All items are available for purchase online and are shipped directly from our warehouse or from our partner warehouses directly to our customers Australia wide. If you are within close proximity of any of our partner warehouses, we can arrange for you to pick up the goods by appointment.

Are you an authorised dealer?

Yes, we are. Ramp Champ is 100% authorised to sell the products we advertise on our website. This means that you get the full manufacturer warranty when you buy from RampChamp.com.au.

Do you offer custom ramps?

Yes, we do. Depending on what type of ramp you’re looking for and what state you’re located in, we can offer custom ramps that are built to your specifications. All we need is a few photos, measurements and a sketch of what you want to be made. We offer free quotations so you know exactly what your custom ramp will cost before you decide to buy. Click here to get a custom ramp quotation today.

When will my order ship out?

We pride ourselves on giving you the best possible service. So, we work hard to get your order shipped within 24 hours. As soon as your product is shipped, we send you an email with tracking details so you can log in and see when your product is due to arrive.

How long does the delivery take?

We send all items via registered courier with tracking details so you can see just where your order is at any point in time. This ensures your item is safe and secure from us to you.

Products are sent during normal business hours, Monday to Friday and from dispatch date, we expect most orders to be delivered between 2 and 10 business days, depending on your location and the location of the warehouse. Some brands are shipped directly from our suppliers' warehouses throughout Australia.

See our full shipping policy here.

Can I pick up my order?

Pickup available. Select at checkout

Some items can be picked up directly from us or from the manufacturer's warehouse. If available when purchasing, on the cart page select "Store Pickup" as an option.

Or, contact our team to see if there's a warehouse near you.

All pickups are by appointment only.

How can I learn more?

Need Help Finding A Product?

Getting the right product for your needs the first time is important. No one wants the hassle of ordering a product only to realise it's not suitable. For expert help choosing the most suitable product for your needs, click the button below.

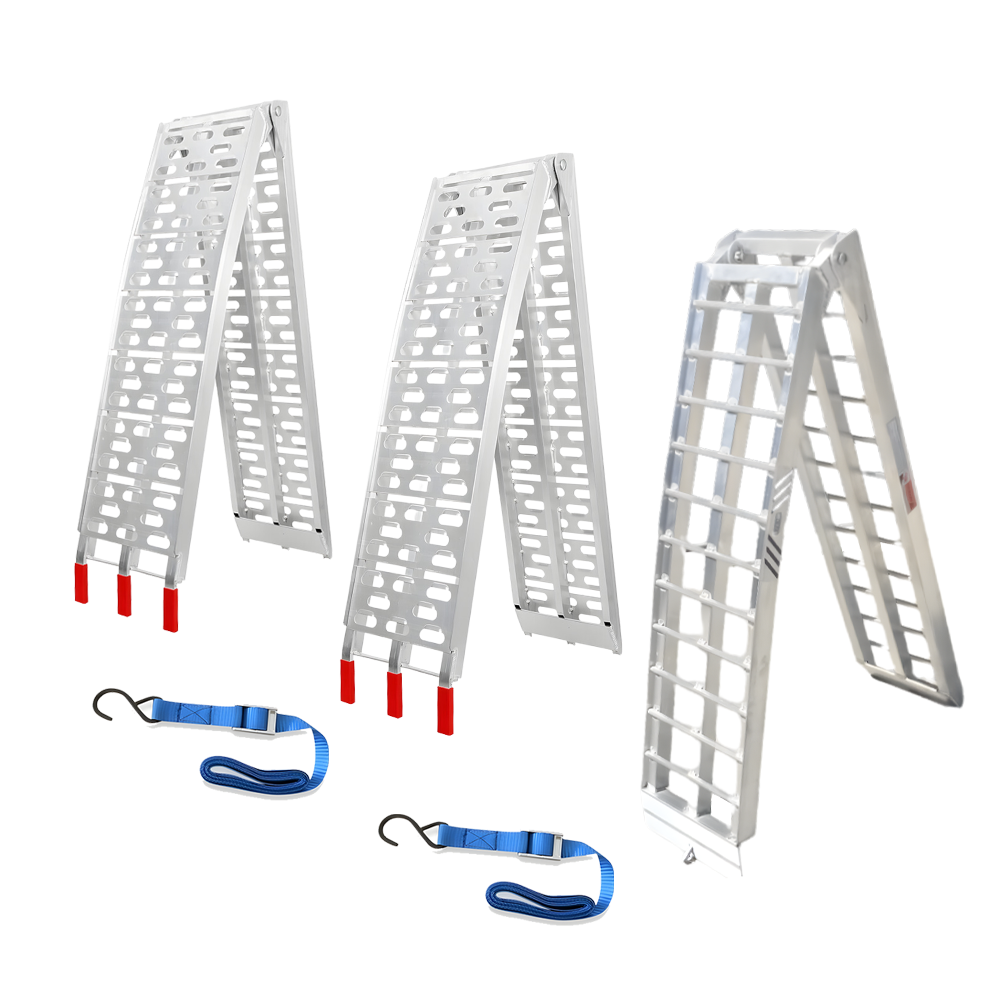

This image displays a set of folding aluminium loading ramps. Two of the ramps have perforated surfaces with red tips, which likely serve as stabilisers or grip points for securing the ramps in place. Each ramp includes a blue securing strap with hooks, ensuring safety during transportation or loading. The third ramp features a traditional slatted design. All ramps are designed to be sturdy and foldable for easy storage and mobility.
