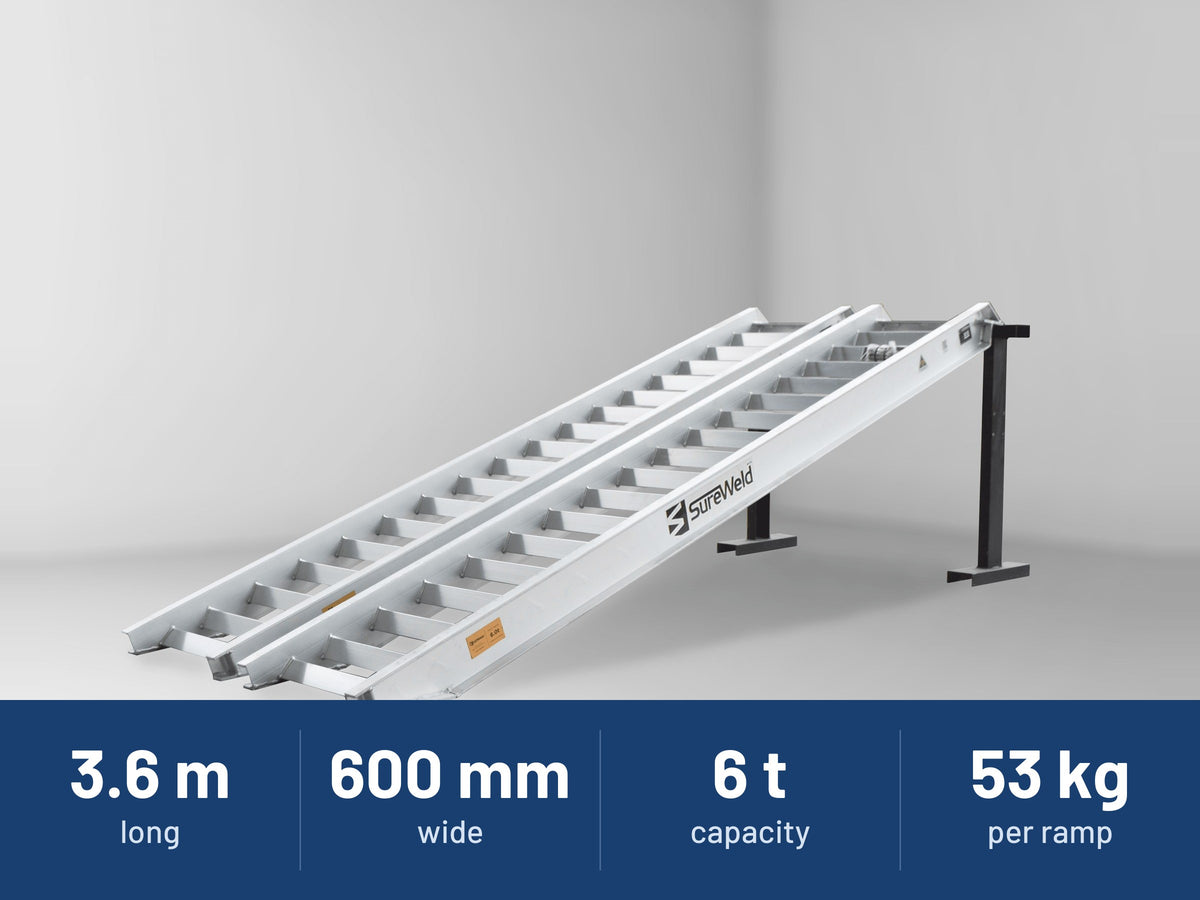

Sureweld 6-Tonne 3.6m x 610mm Track Series Aluminium Loading Ramps
Pickup available. Select at checkout
Orders processed and shipped out in 5-7 business days.
Covered by the full 12-month Sureweld
Eligible for 100-day free
Request a free Couldn't load pickup availability
Description
Description

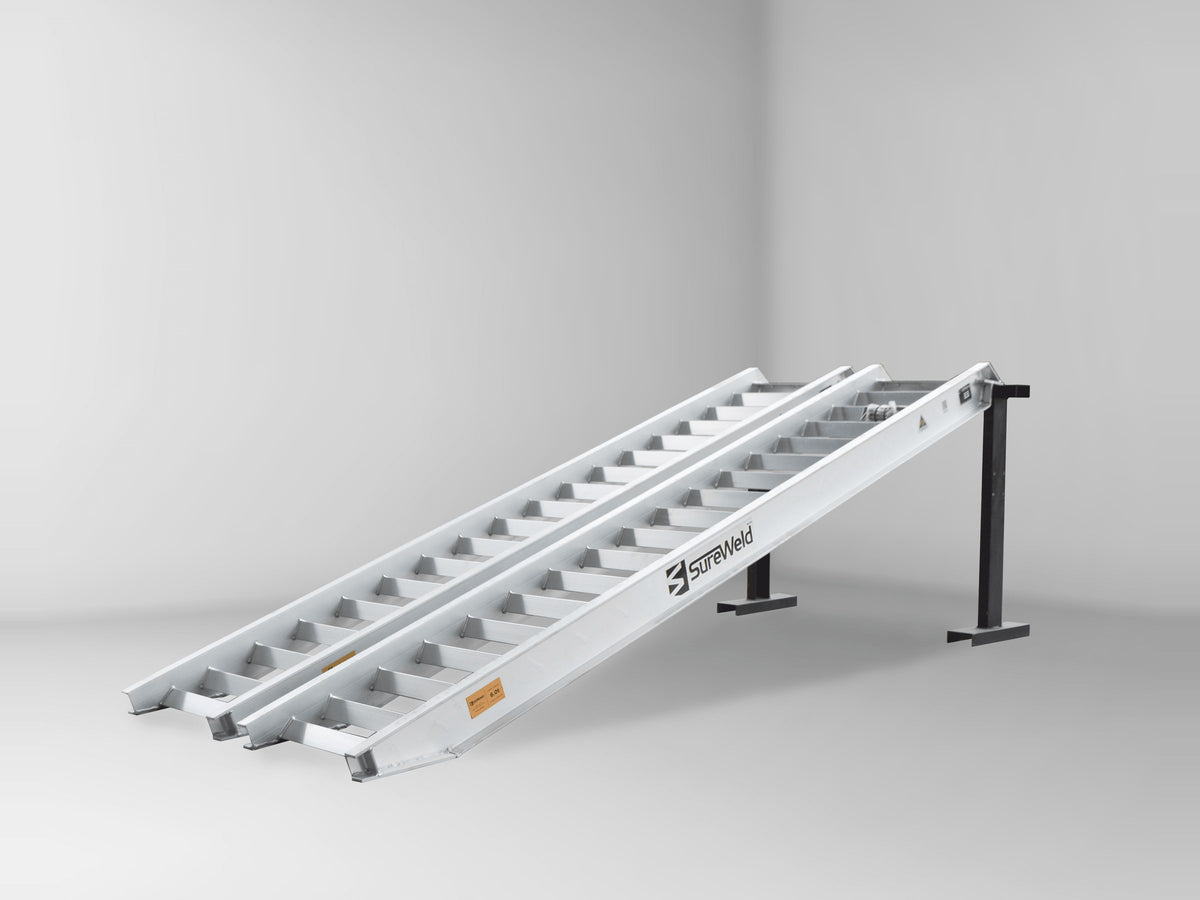

Sureweld 6 Tonne 3.6m x 610mm Track Series Aluminium Machinery Loading Ramps, Pair - Made in Australia

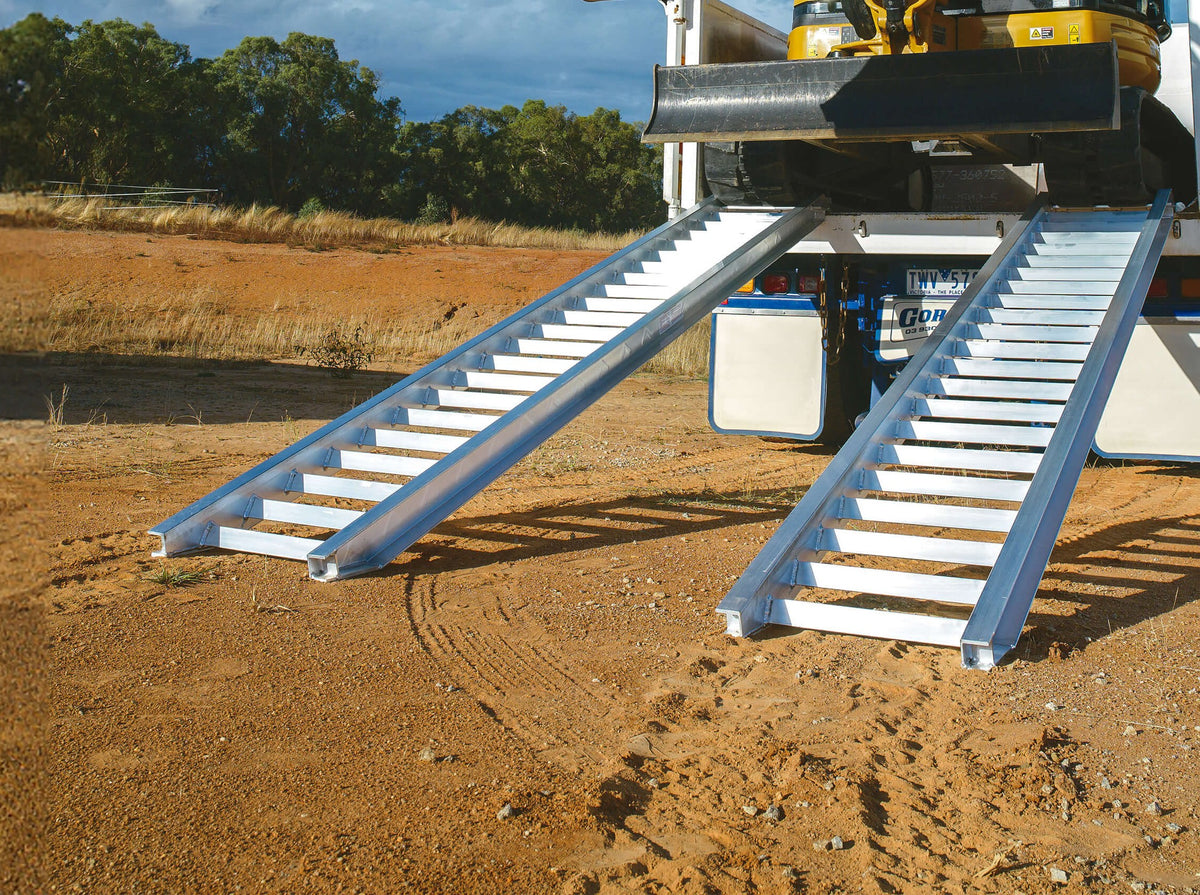

The Sureweld 6-Tonne Track Series Aluminium Loading Ramps, measuring 3.6 meters by 610 millimeters, are engineered for machinery with steel tracks, including those with rubber pads, as well as rubber tracks.

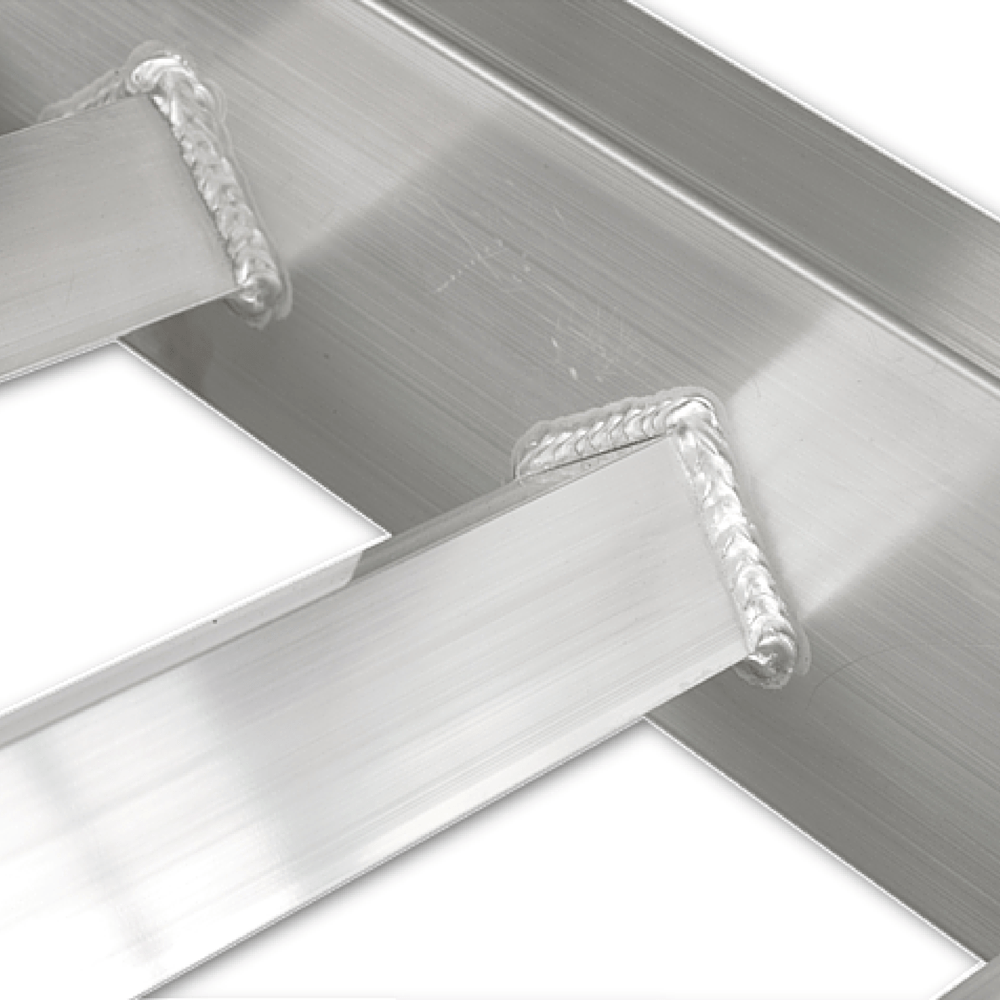

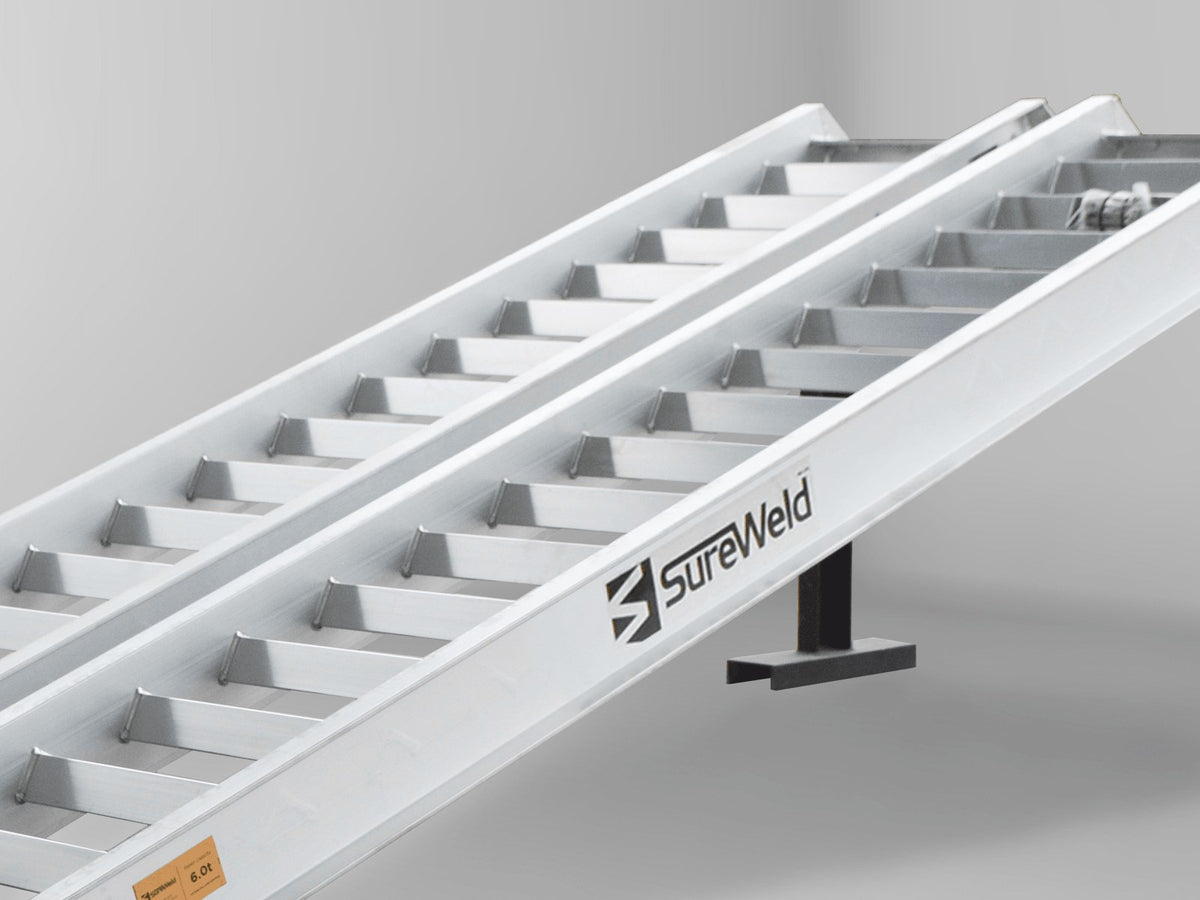

These ramps feature exceptionally robust tread surfaces, are designed to withstand damage from tracks, and offer the highest versatility in the Sureweld range, accommodating both tracks and pneumatic (air) tyres.

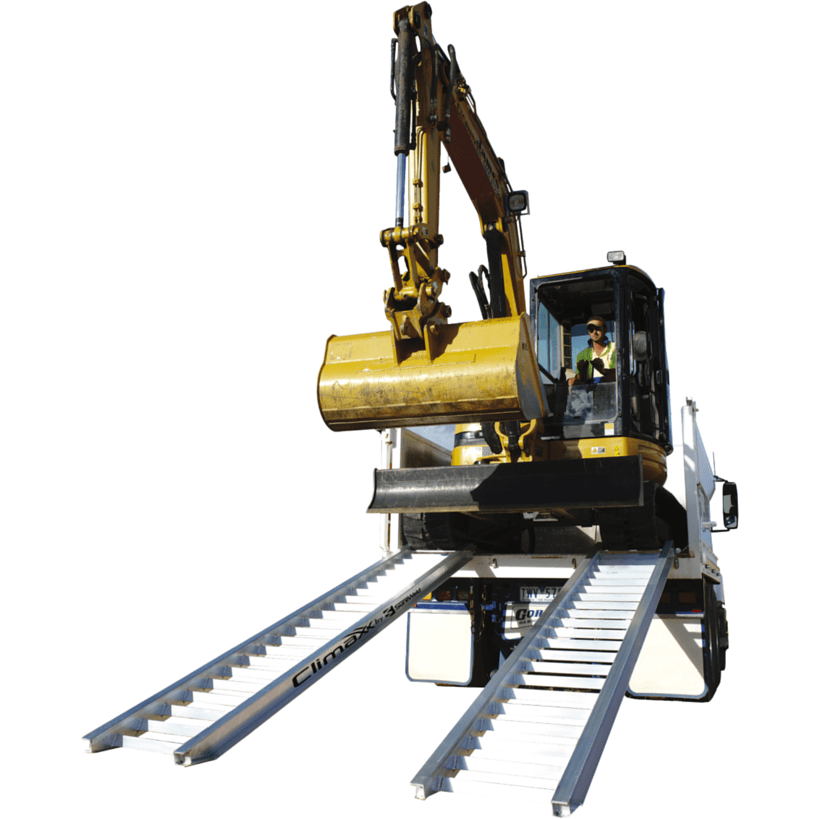

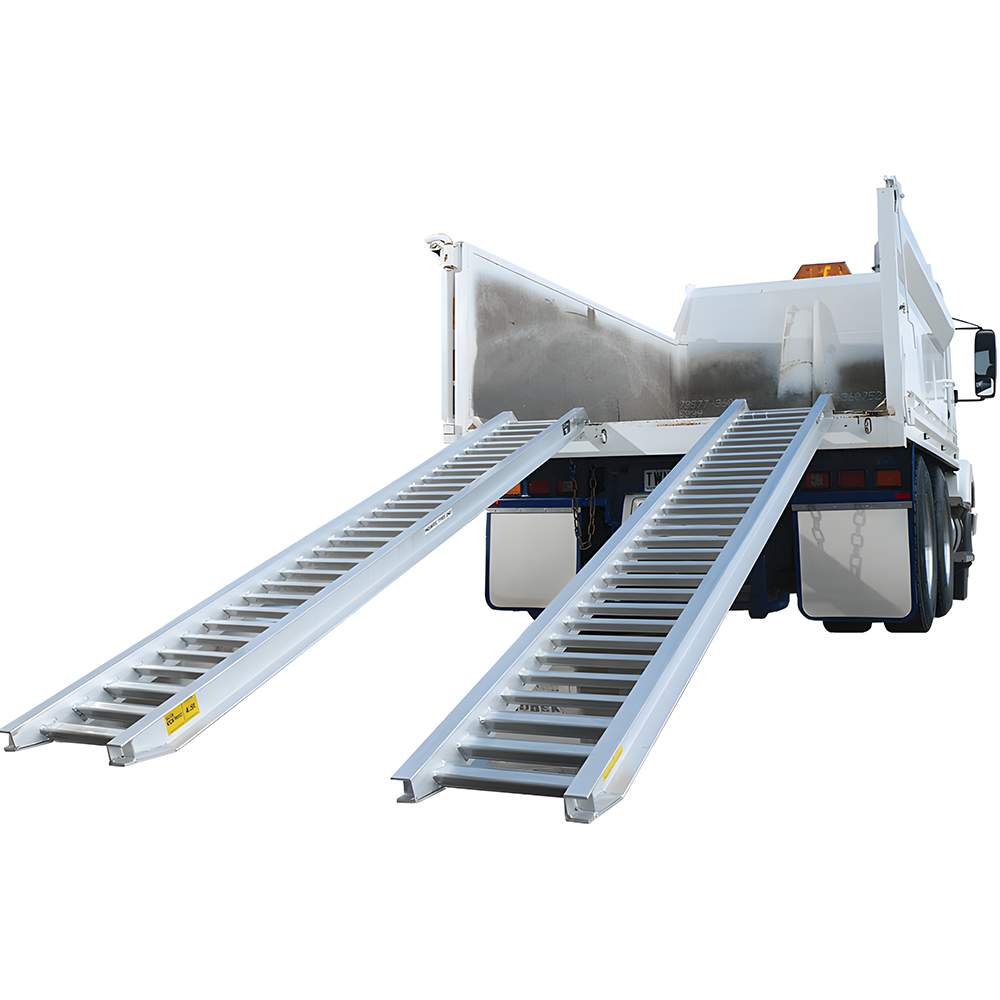

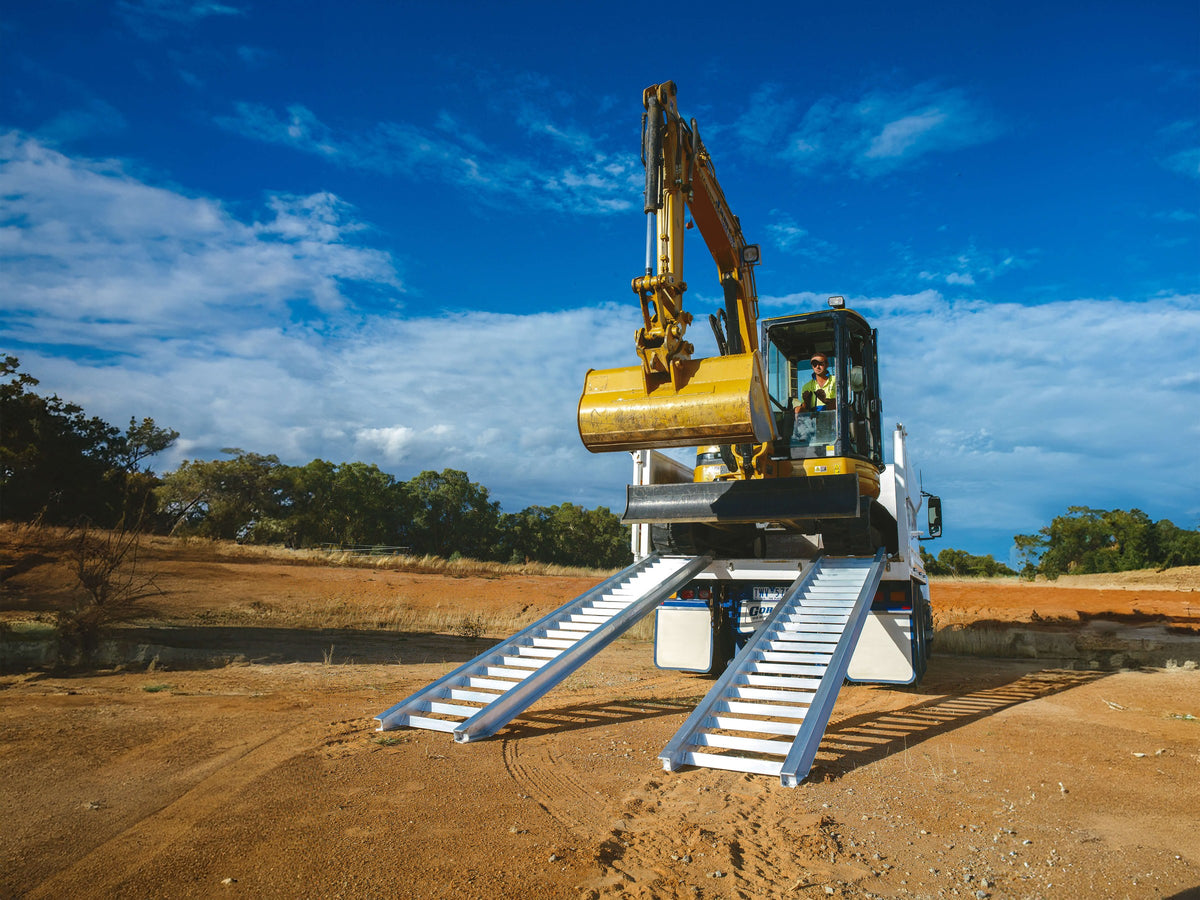

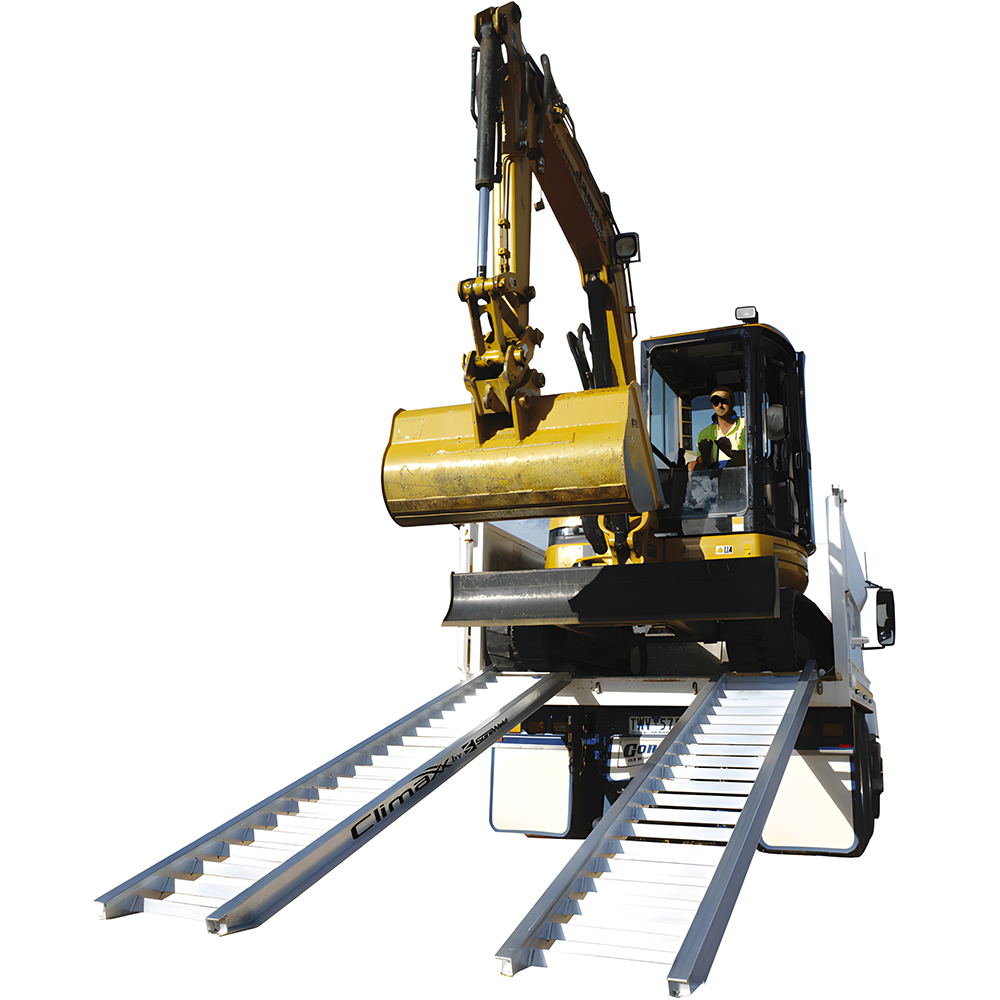

Ideal for loading machinery with various types of tracks and tyres, these ramps come complete with connection plates and zinc-coated steel pins, making them perfect for loading onto tipper body trucks, flatbed trucks, or trailers.
Features and Benefits
- Ideal for machinery with tracks and rubber tyres
- Australian designed and manufactured
- Manufactured from structural-grade alloys to ensure the maximum strength available

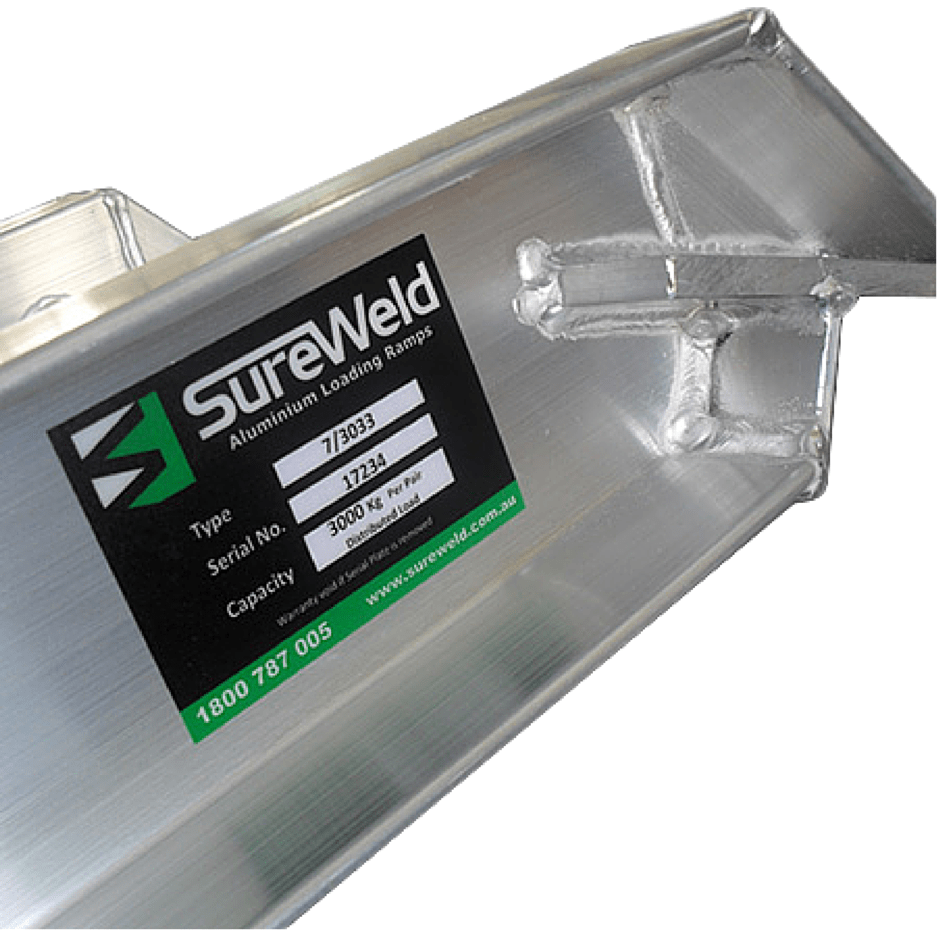

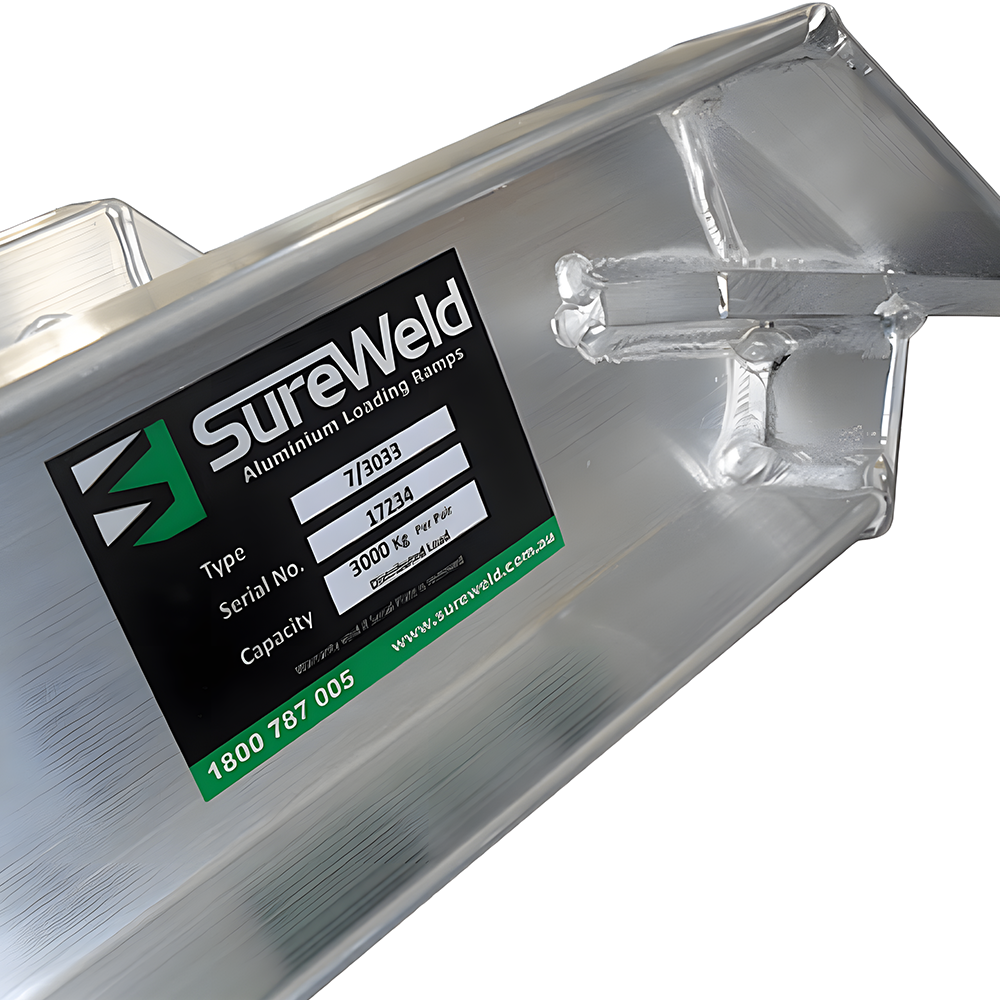

- Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice
- Connecting plate and pin ensures maximum stability and safety
- All ramps are built to take a reasonable variation around typical truck body heights
- 12-month warranty
- Made from high-grade structural alloy
- NATA certified and tested
- Ramps sold in pairs
For loading machinery where tracks are not used on ramps, the Sureweld Rubber Series Ramps provide a more lightweight and economical option over these Track Series Ramps.
Track Series Ramp Specifications
|
Product Code |
Rated Capacity |
Ramp Mass |
Ramp Length |
Track Width (internal) |
Ramp Width |
Ramp Depth |
Rung Recess |
| 7/3033T | 3000kg | 32kg | 3.3m | 350mm | 450mm | 110mm | 40mm |
| 7/3635T | 3600kg | 39kg | 3.5m | 400mm | 500mm | 120mm | 40mm |
| 7/4040T | 4000kg | 47kg | 4.0m | 400mm | 510mm | 125mm | 45mm |
| 7/4536T | 4500kg | 41kg | 3.6m | 400mm | 510mm | 125mm | 45mm |
| 7/4536TW | 4500kg | 43kg | 3.6m | 450mm | 560mm | 125mm | 45mm |
| 7/4833T | 4800kg | 37kg | 3.3m | 400mm | 510mm | 125mm | 45mm |
| 7/4833TW | 4800kg | 39kg | 3.3m | 450mm | 560mm | 125mm | 45mm |
| 7/6036T | 6000kg | 53kg | 3.6m | 500mm | 600mm | 160mm | 52mm |
| 7/7536T | 7500kg | 58kg | 3.6m | 500mm | 600mm | 184mm | 60mm |
| 7/9037(T) | 9000kg | 71kg | 3.7m | 500mm | 640mm | 200mm | 60mm |
| 7/11537(T) | 11500kg | 85kg | 3.7m | 500mm | 660mm | 180mm | 55mm |
Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.
