TradeQuip Hydraulic Workshop Press with Piston Ram 20T Capacity

$98900 $1,08600
TradeQuip  |  SKU: 1063T

delivery man with parcel Pickup available. Select at checkout fast box Made to order in Australia. Shipped out within 3-10 business days. warranty icon Covered by the full 12-month TradeQuip warranty returns icon Eligible for 100-day free returns quote request icon Request a free  quotation

Need this before Christmas?
See delivery estimate details here.

Description

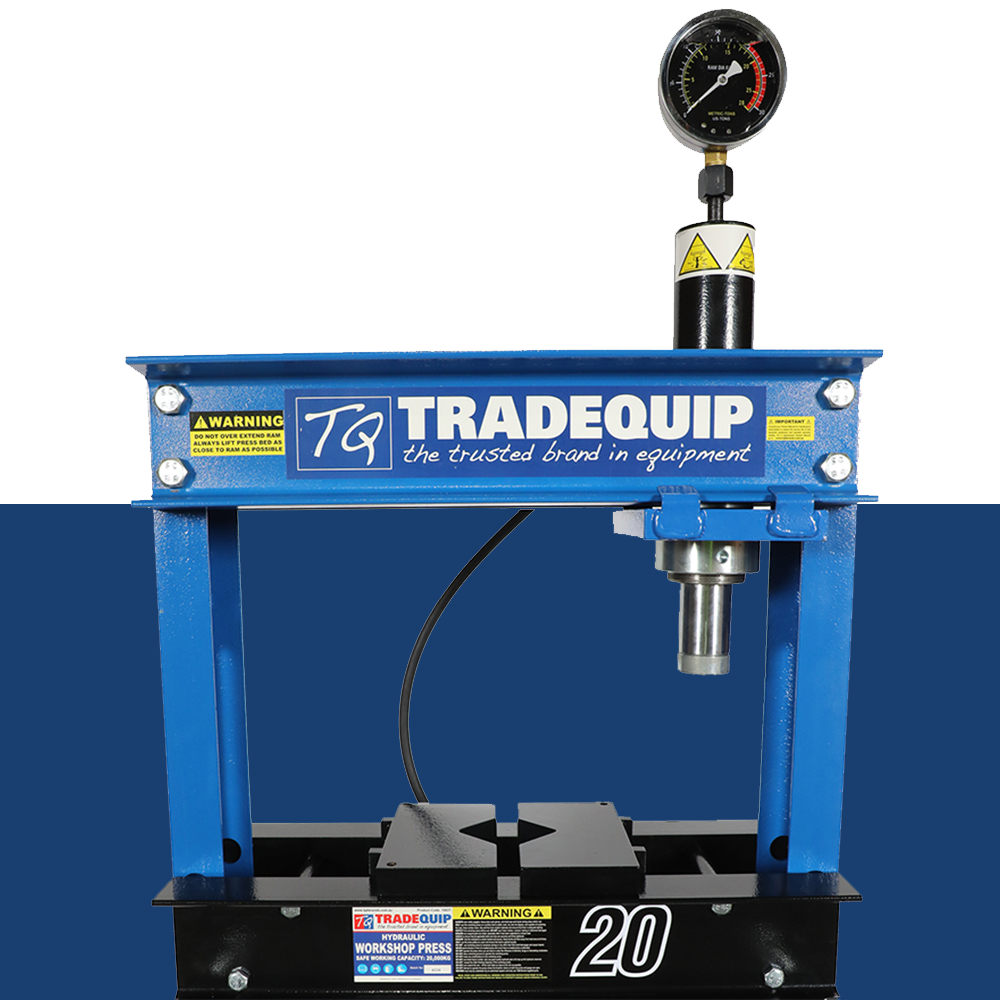

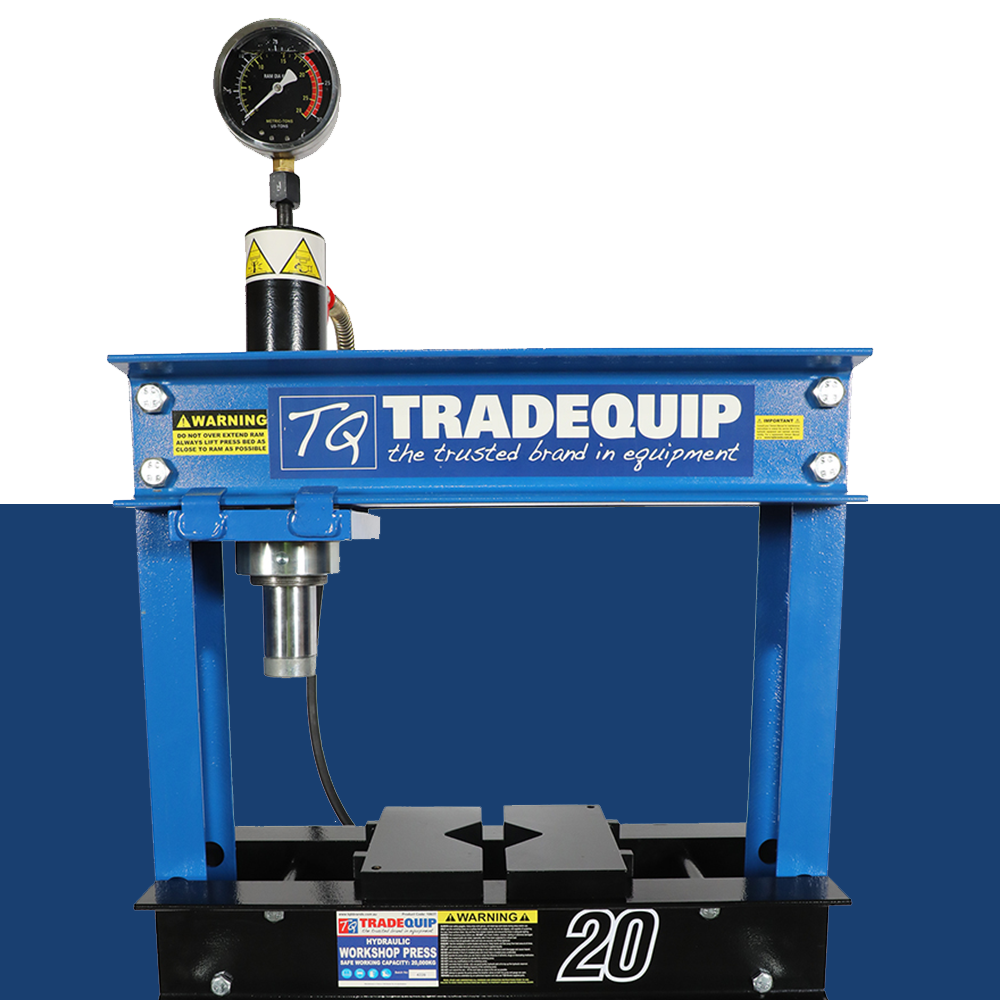

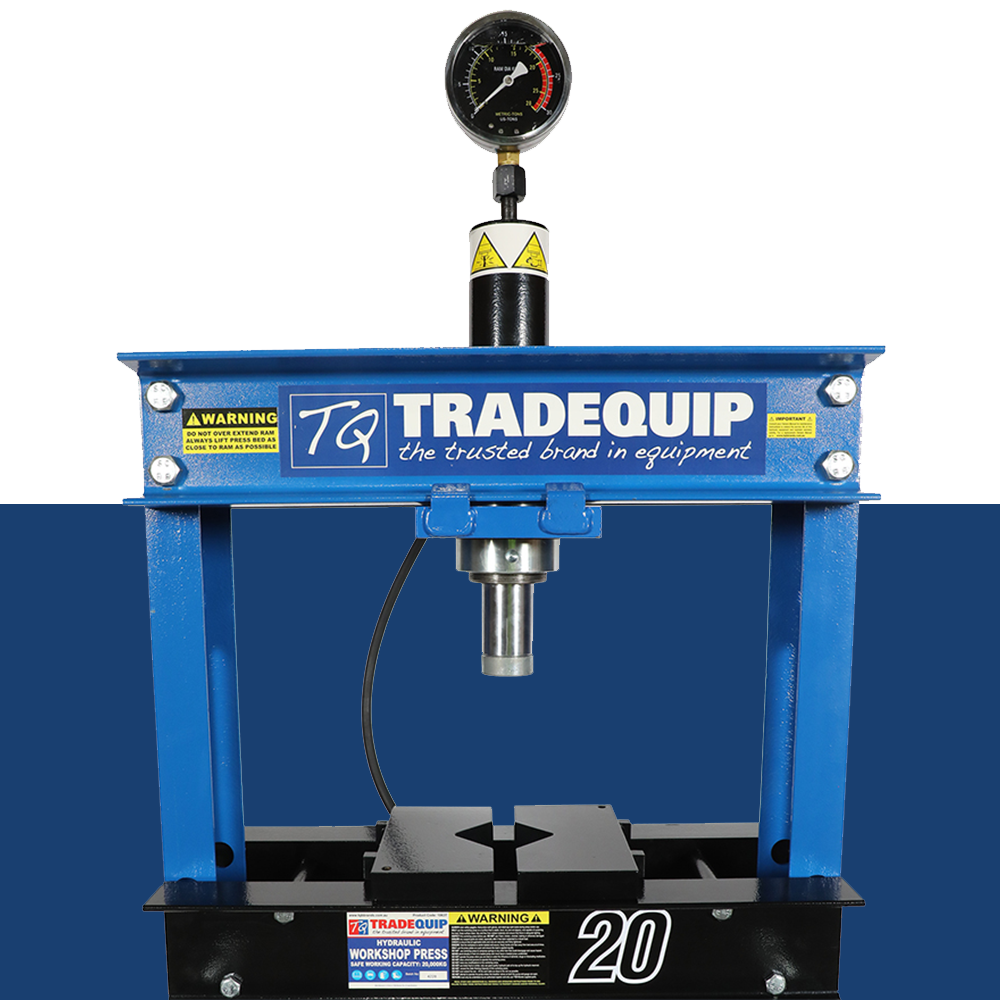

20,000kg Capacity TradeQuip Hydraulic Workshop Press with Piston Ram

Experience exceptional performance and durability with the TradeQuip Hydraulic Workshop Press with Piston Ram, engineered for heavy-duty workshop applications and backed by a 12-month trade use warranty.

The TradeQuip "Made for the Trade" Hydraulic Workshop Press is designed for straightening, stamping, bending, and pressing hard-to-handle components.

Constructed from high-grade steel, this press ensures durability and reliability for various workshop tasks, particularly suited for agricultural and industrial use.

The polished inner cylinder walls and chromed cylinder ram and pistons, guided by high-performance seals, minimise abrasion and wear, extending the life of the hydraulic seals.

Key Features and Benefits:

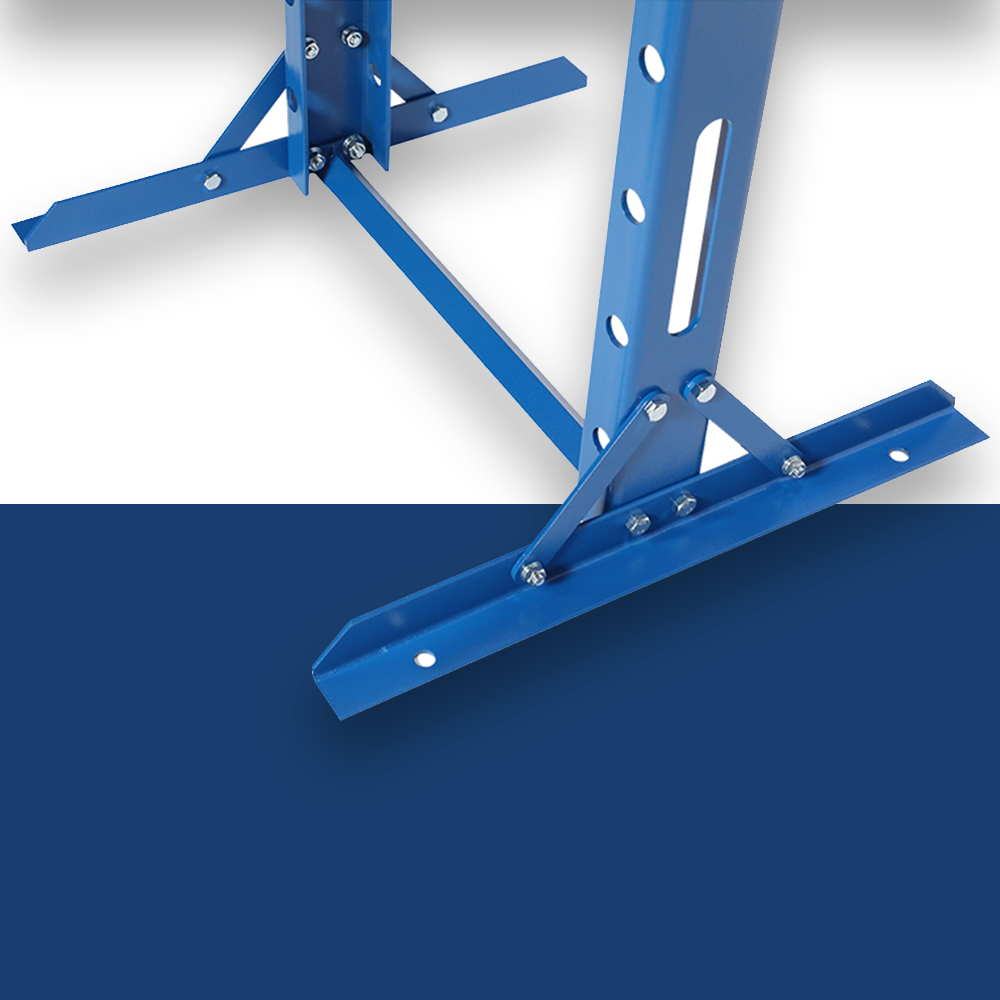

  • Heavy-Duty H-Frame Construction: Built from high-grade steel to ensure durability and withstand rigorous use.
  • Long-Lasting Paint Finish: Lead-free paint finish applied after a thorough chemical wash, resistant to oil, grease, and dirt for easy cleanup.

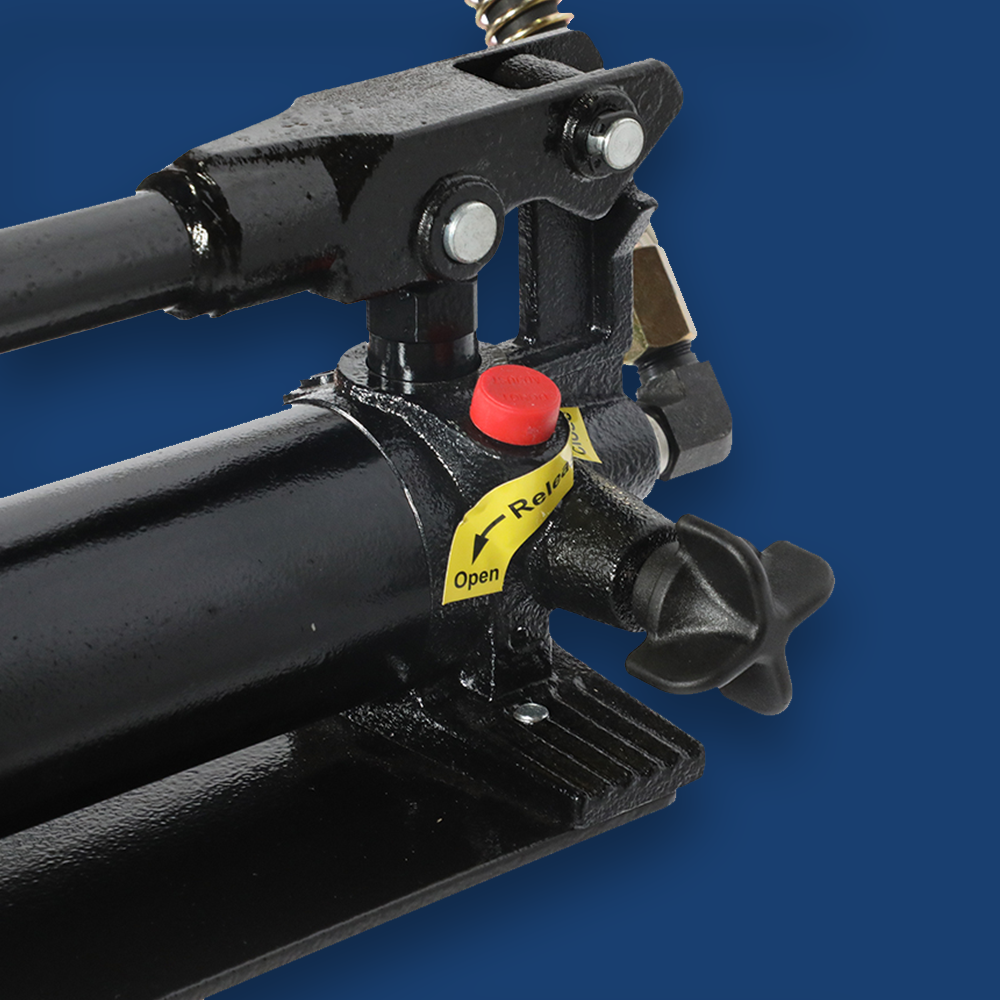

  • High-Quality Hydraulic Cylinder: Large diameter hydraulic steel cylinder unit requires lower oil pressure, reducing wear and extending service life.

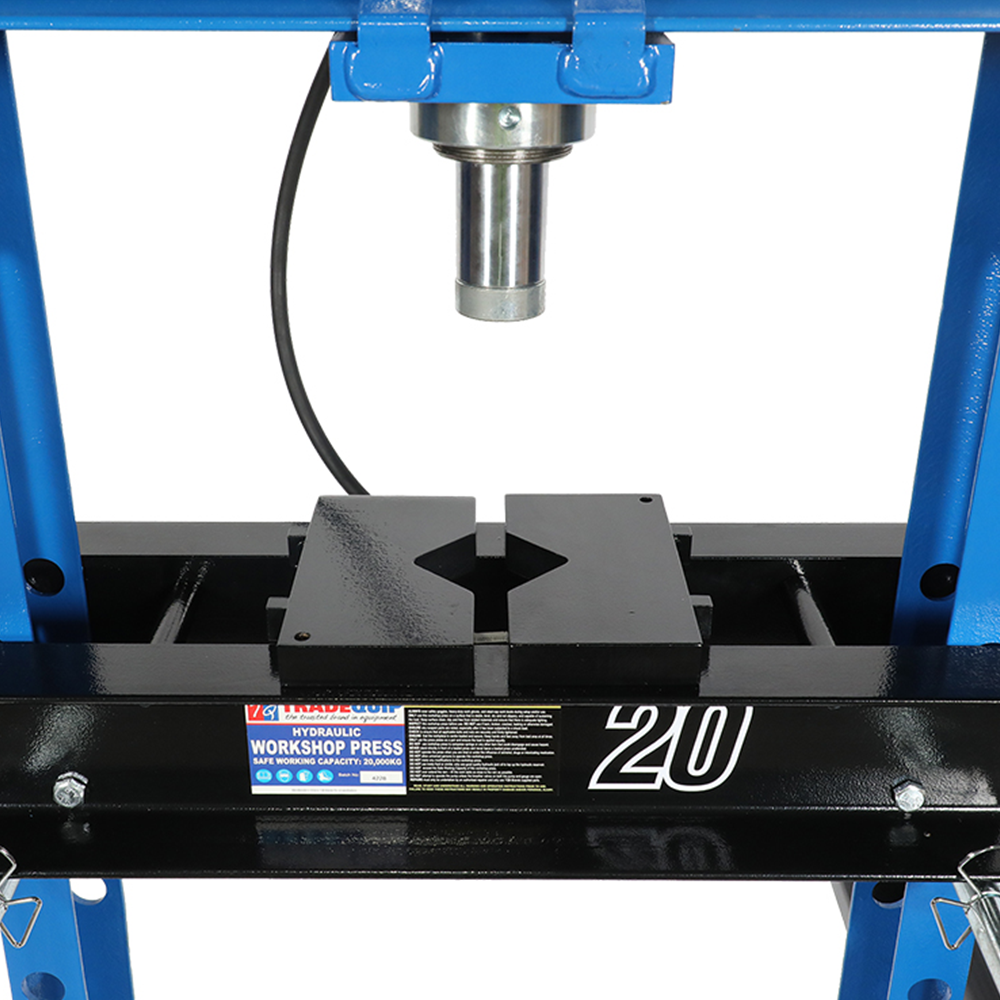

  • Polished and Treated Piston-Ram: Extends the lifespan of the press with reinforced head bolster for added strength.

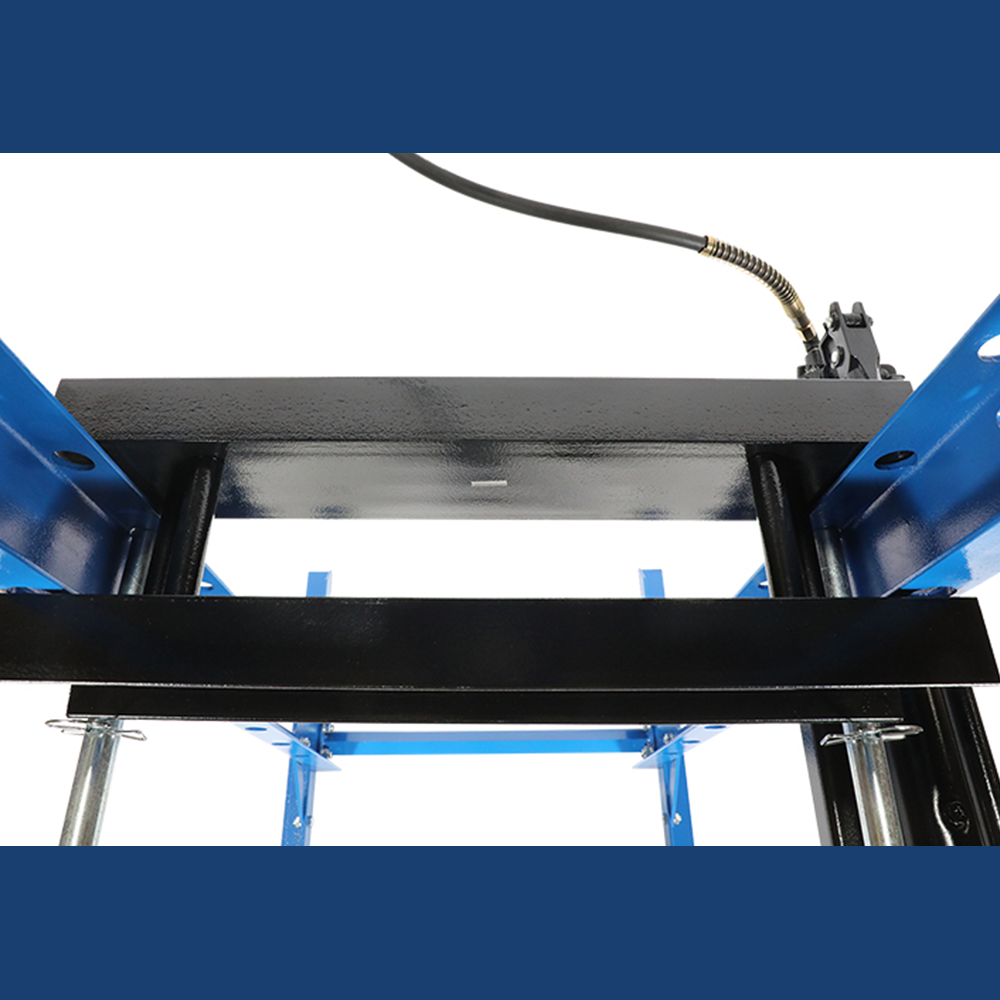

  • Included Bed Plates: Enhances versatility and functionality.

Advantages of the TradeQuip Hydraulic Workshop Press with Piston Ram:

  • Enhanced Durability: High-grade steel construction and polished components ensure long-term use.
  • Easy Maintenance: Oil, grease, and dirt-resistant paint finish for effortless cleaning.
  • Efficient Operation: High-quality hydraulic components for fast and reliable performance.
  • Versatile Applications: Suitable for straightening, stamping, bending, and pressing a variety of components.
  • High Load Capacity: Safe working capacity of 20,000kg for handling heavy-duty tasks.
  • Trade Use Warranty: Covered by a 12-month warranty for trade use, providing peace of mind.

Product Specifications:

  • Safe Working Capacity: 20,000kg
  • Working Range: 43mm - 882mm
  • Overall Height: 1795mm
  • Overall Width: 780mm
  • Overall Depth: 690mm
  • Bed Width: 505mm
  • Bed Gap: 105mm
  • Bed Inside Working Area: 358mm x 105mm
  • Press Head Cap Diameter: 45mm
  • Press Head Cap Length: 17mm
  • Piston Ram Stroke: 185mm
  • Ram Lateral Adjustment: 180mm
  • Crate Dimensions: 1550mm x 280mm x 240mm

Intended Use:

Ideal for straightening, stamping, bending, and pressing any component that is difficult to handle. This hydraulic press is perfect for workshop applications in agriculture and industry, capable of handling tasks such as straightening, bending, folding, punching, and removing bolts and bearings with ease.

Package Includes:

  • TradeQuip Hydraulic Workshop Press with Piston Ram
  • Pair of bed plates
  • Installation instructions

Maximise your workshop capabilities with the TradeQuip Hydraulic Workshop Press with Piston Ram

Designed for durability and efficiency, this press is the ultimate solution for heavy-duty tasks. Order now and enhance your workshop’s performance with one of the best hydraulic presses on the market, backed by a 12-month trade use warranty!

Specifications

  • Capacity
    20,000kg
  • Weight
    Nett Weight: 90kg
    Gross Weight: 110kg
  • Length
    Press Head Cap Length: 17mm
  • Width
    Overall Width: 780mm
    Bed Width: 505mm
  • Dimensions
    1550mm x 280mm x 240mm
  • Depth
    690mm
  • Colour
    Blue

Delivery

All orders are shipped from Australia with fast shipping from trusted couriers & order tracking notifications sent via SMS and email.

Made to order in Australia. Shipped out within 3-10 business days.

Delivered via courier: VIC, ACT & NSW 2-4 days, QLD & SA, 3-5 days, WA & NT 6-8 days

Pickup available. Select at checkout

View our shipping policy for full delivery details.

Our customer support team is here to help with any delivery concerns.

Finance Options

Request a Quote

Your Details Are Safe

  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Lifetime Support

Ramp Champ customers get free lifetime product support from our ramp experts.

Need help? Call us anytime 1300 913 047

TradeQuip Hydraulic Workshop Press with Piston Ram 20T Capacity Reviews

Frequently Asked Questions

What is the maximum load capacity of the TradeQuip Hydraulic Workshop Press with Piston Ram?

The TradeQuip Hydraulic Workshop Press with Piston Ram has a safe working capacity of 20,000kg, making it suitable for heavy-duty tasks such as straightening, stamping, bending, and pressing components.

What materials are used in the construction of the TradeQuip Hydraulic Workshop Press with Piston Ram?

The TradeQuip Hydraulic Workshop Press with Piston Ram is constructed from high-grade steel, ensuring durability and strength for rigorous workshop applications. It also features a lead-free paint finish that is resistant to oil, grease, and dirt.

Does the TradeQuip Hydraulic Workshop Press with Piston Ram come with a warranty?

Yes, the TradeQuip Hydraulic Workshop Press with Piston Ram is covered by a 12-month trade use warranty, providing peace of mind and assurance of its quality and reliability.

What is the warranty on TradeQuip items?

Ramp Champ only works with well-known, industry-leading manufacturers such as TradeQuip. All products come with a minimum 12-month warranty. For further information see the TradeQuip Warranty page.

Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately.

What is your returns policy?

We know how crucial it is to find the perfect products for your access needs. To ensure you shop confidently, we proudly offer 100-day Free Returns on eligible products.

If you need to return your product, we'll organise and cover the return shipping costs across Australia without any restocking fees or hidden costs.

You'll have the option for a store credit, a full refund, or an exchange when the returned products meet the return criteria:

  •  The products cannot be used, damaged or modified and must be returned in the original packaging materials.
  •  Some products, such as almost new, made-to-order, installed, and custom-made products, aren't eligible for return.
  •  The 100-Day period begins from the day that your order is delivered or picked up.
  •  Only valid for the original purchaser.
  •  Only valid for online sales via rampchamp.com.au.
  •  Refunds, store credits or item swaps apply only to the cost of the products. Installation fees and original shipping costs will not be refunded.

Find our more by visiting our Refund Policy page.

How can I place an order?

How to order online: Find a product you'd like to buy on our website and click on the add to cart button. Then, simply follow the instructions on the checkout page. If there were any options or upgrades that you may have missed, one of our customer service staff members will contact you either by email or phone before we process your order.

How to order by phone: Call us on 1300 913 047. Our expert staff will help you select your product based on your individual requirements. We only stock the best brands and have the most competitive prices to ensure that you'll be completely satisfied with every RampChamp.com.au purchase you make. If you feel comfortable, go ahead and place your order online.

How to order by email: Send us an email at sales@rampchamp.com.au and one of our staff members will get back to you as soon as possible with an invoice for your order. Please include the product, any options or upgrades that you might require and your full address for delivery.

Do you have a physical store?

We do not have a storefront. All items are available for purchase online and are shipped directly from our warehouse or from our partner warehouses directly to our customers Australia wide. If you are within close proximity of any of our partner warehouses, we can arrange for you to pick up the goods by appointment.

Are you an authorised dealer?

Yes, we are. Ramp Champ is 100% authorised to sell the products we advertise on our website. This means that you get the full manufacturer warranty when you buy from RampChamp.com.au.

Do you offer custom ramps?

Yes, we do. Depending on what type of ramp you’re looking for and what state you’re located in, we can offer custom ramps that are built to your specifications. All we need is a few photos, measurements and a sketch of what you want to be made. We offer free quotations so you know exactly what your custom ramp will cost before you decide to buy. Click here to get a custom ramp quotation today.

When will my order ship out?

We pride ourselves on giving you the best possible service. So, we work hard to get your order shipped within 24 hours. As soon as your product is shipped, we send you an email with tracking details so you can log in and see when your product is due to arrive.

How long does the delivery take?

We send all items via registered courier with tracking details so you can see just where your order is at any point in time. This ensures your item is safe and secure from us to you.

Products are sent during normal business hours, Monday to Friday and from dispatch date, we expect most orders to be delivered between 2 and 10 business days, depending on your location and the location of the warehouse. Some brands are shipped directly from our suppliers' warehouses throughout Australia.

See our full shipping policy here.

Can I pick up my order?

Pickup available. Select at checkout

Some items can be picked up directly from us or from the manufacturer's warehouse. If available when purchasing, on the cart page select "Store Pickup" as an option.

Or, contact our team to see if there's a warehouse near you.

All pickups are by appointment only.

How can I learn more?

Here are some hand selected articles we think you'll find useful:

The Ramp Champ Story

How Can A Lifting Device Or Crane Help Me At Home?

Or, if you have further questions, check out our FAQ Page.

Need Help Finding A Product?

Getting the right product for your needs the first time is important. No one wants the hassle of ordering a product only to realise it's not suitable. For expert help choosing the most suitable product for your needs, click the button below.

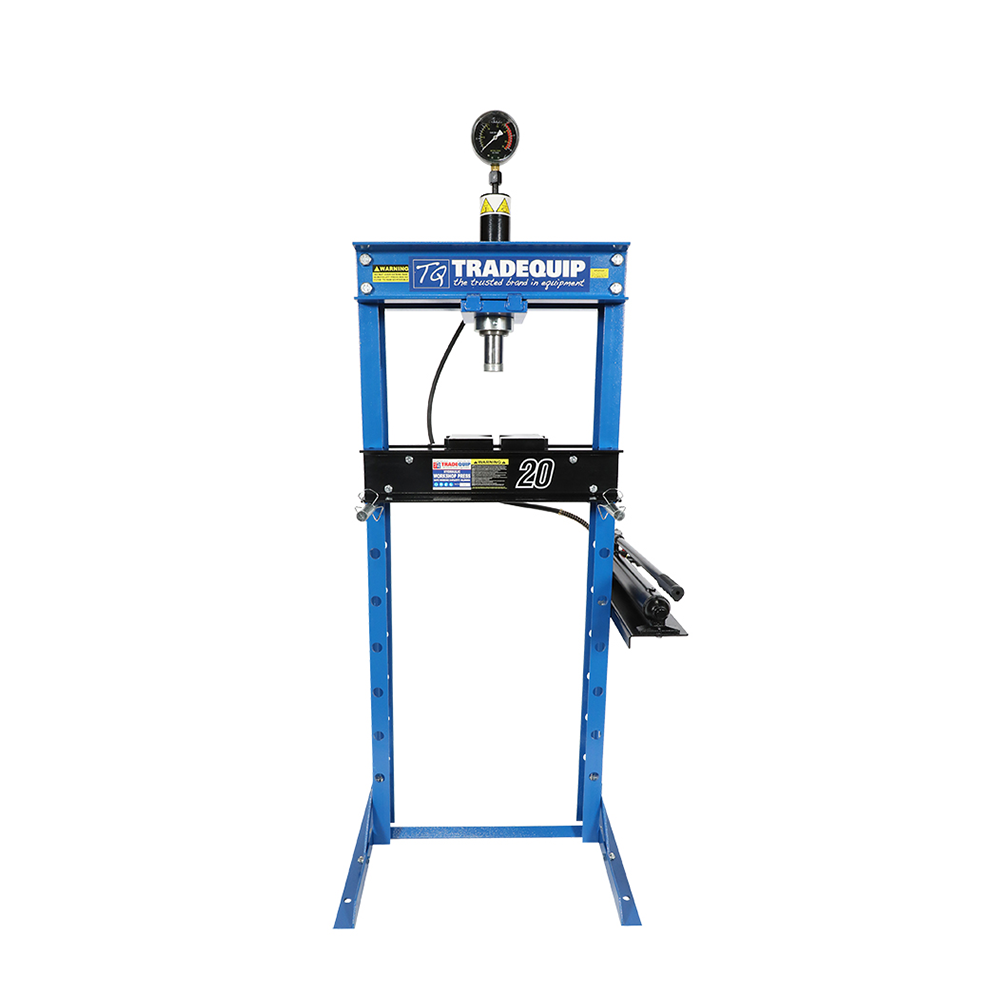

front view of TradeQuip Hydraulic Workshop Press with Piston Ram 20T Capacity
